Auto 220v Robot Grinding Machine For Office Chair Leg , One Year Warranty

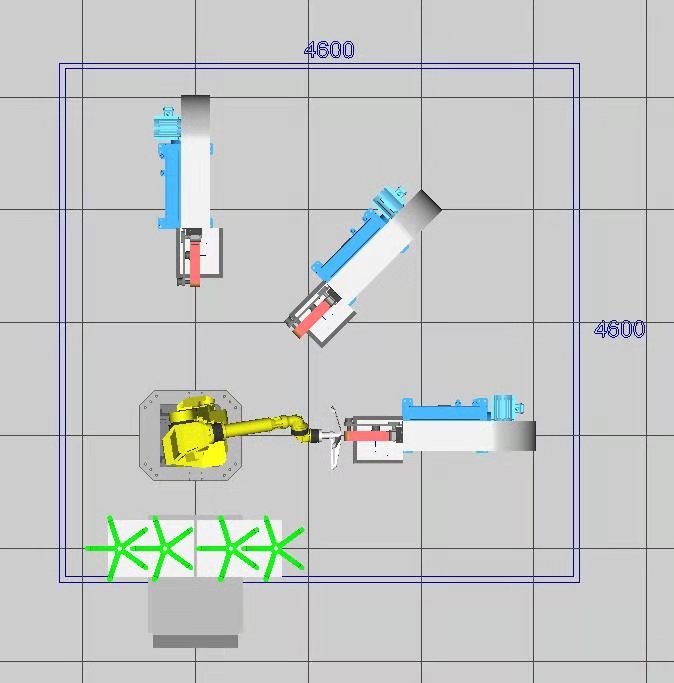

1) System Composition

A. FANUC M-710IC/50E kg intelligent robot(1set)

B. Sand Belt Polishing Mchian(quantity according to process requirements,4sets)

C. Double Station Feed Table(1set)

D. Discharge Tray(Two sets for each product,customized according to the sample)

E. Wheel Buffer Machine (1set)

2) Work Procedure

1. Firstly, the work-piece to be polished is manually placed in the tray of the feeding

table ( the tray is customized and installed on the feeding table, the position of the

work-piece is fied and the direction is unified)

2. After feeding, press the start button, the robot automatically goes to the feeding

platform, and the robot grips the work-piece in the tray automatically.

3. After the work-piece is finished, the work-piece is moved to the grinding place of the

abrasive belt machine for grinding process.

4. According to process requirements, the robot can polish on different numbers of belt.

5. After sanding and polishing of the belt conveyor, the movement of the robot belt

work-piece is at the position of the polishing cloth thrower, and the surface of the

work-piece is polished

6. After the surface polishing is finished, the robot moves the work-piece to the feeding

platform.

7. then the robot reloads the work-piece onto the feeding platform, repeats the above

Process

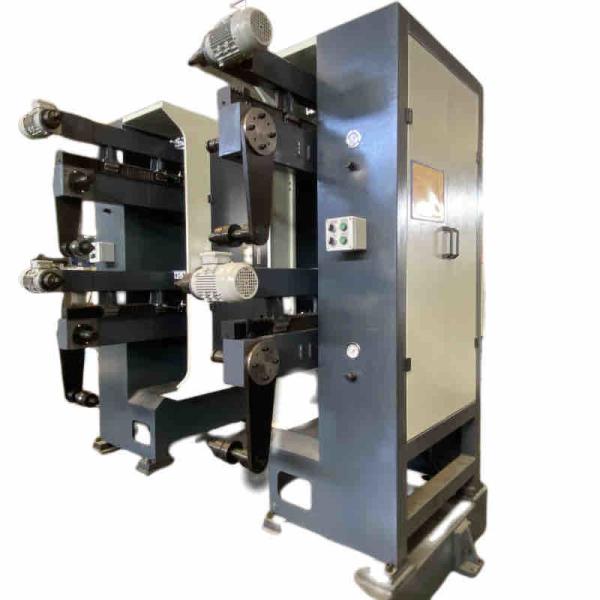

Steps 100# Sand Belt Grinding Machine

240# Sand Belt Grinding Machine

600# Sand Belt Grinding Machine

800# Sand Belt Grinding Machine

4)Equipment Configuration And Details

Click the link to view video:

https://www.youtube.com/watch?v=kv3QiZceUxI&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=7

Xiamen DingZhu(DZ) Intelligent Equipment Co.,Ltd was founded in 2016, which was principally engaged in research,development and manufacture of automatically equipment for foundry industry used in plumping hardware,sanitary ,car spares ,valves etc.We provide automatic core shooting machine,gravity die casting machie,automatic Low Pressure Die Casting machine (LPDC), robotic cell grinding and polishing machines.

Above equipments are based on the comprehensive similar product at Domestic and foreignand independent development to adapt to Domestic and foreign of special.

DZ’s factory located in NO.36 Qingxi Road,Guankou Town,Jimei District Xiamen City,Fujian Province.It just takes about 30 minutes to the Gaoqi(Xiamen) Airport,nearly seaport and highway ,so the traffic is very convenient.

Our working process includes a feasibility study and definition of the project and the design, manufacture, predelivery, training, set up and start up and after-sales service.

Corporate Culture

Dingzhu’s Vision: to be the worldwide famous brand supplier of providing total solutions to customers requirement.
Dingzhu’s Mission: to improve labors tough working environment, enhance work efficiency, completely help owners to reduce production cost.
Dingzhu’s Philosophy: human-oriented, honest, innovative and make the greatest contribution to society.
Dingzhu’s Service: with excellent technology and products, professional dedication to serve customers.
Dingzhu’s Value: innovation, advanced technology’s R&D, serving China and worldwide’s manufacturing industries.

ADVANTAGES OF COMPANY

1) Most competitive price and quality.

2) Auto working, easy operation, save labour.

3) Short delivery time.

4) Import and Export License.

5)After-sales service:Engineers available to serve overseas and Instant service on line.

DZ is looking forward to cooperating with your company and be an active part to your success.
