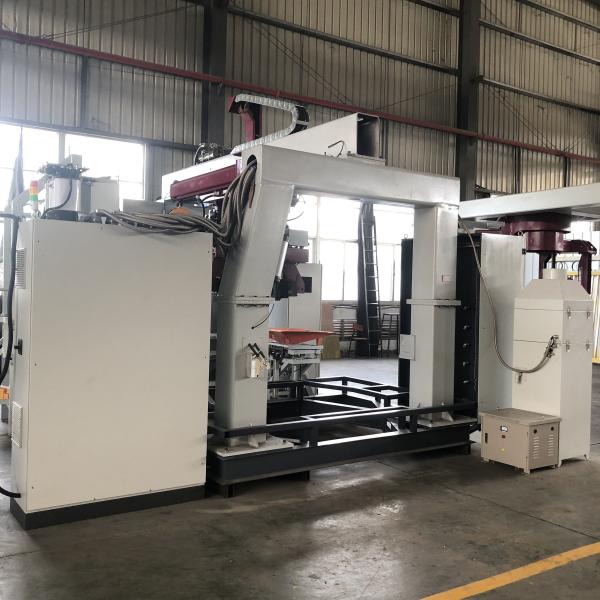

    High Efficiency Die Pressure Casting Machine For Sanitary Ware Shower Products

    Ask Lasest Price
    Brand Name : DZ
    Model Number : LPDC
    Certification : CE ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1set/per month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    High Efficiency Die Pressure Casting Machine For Sanitary Ware Shower Products

    1-Manipulator Low Pressure Die Casting Machine Technical Parameters
    CodeItemSpecifications
    1Dimensions ( L*W*H)5000*4600* 3400
    2Machine Power125KW
    3Rated Voltage380V
    4Manipulator Quantity1
    5Maximum Weight of Die180KG
    6Maximum Dimension of Die500*400*250
    7Furnace Power3*35KW
    8Furnace Melting Capacity350Kg
    9Furnace Quantity1
    10Die Cleaning Box Quantity1
    11Feeder Quantity1
    12Blackwash Tank Quantity1
    13Hoist Quantity1
    14Lift Tube Quantity3
    15Pneumatic Pressure6KG
    16Water Pressure3KG
    17Maximum Furnace Temperature1250℃
    18Cooling Water Temperature20±2℃
    19Maximum Speed of Manipulator20m/ Min.
    20Maximum Die Clamping Stroke370mm
    21Die Bath Angle0-90º
    22Ejector Pin Pressure540KG
    23Ejector Pin Stroke40mm
    24Pouring Pressure50-1200bar
    25Maximum Lift Weight of Hoist500kg


    2- Manipulators Low Pressure Die Casting Machine Technical Parameters

    Code
    Item
    Specifications
    1
    Dimension ( L*W*H)
    7000*7000*3680
    2
    Machine Power
    180KW
    3
    Rated Voltage
    380V
    4
    Manipulator Quantity
    2
    5
    Maximum Weight of Die
    180KG
    6
    Maximum Dimension of Die
    500*400*250
    7
    Furnace Power
    2*80KW
    8
    Furnace Melting Capacity
    520Kg
    9
    Furnace Quantity
    1
    10
    Die Cleaning Box Quantity
    1
    11
    Feeder Quantity
    1
    12
    Blackwash Tank Quantity
    1
    13
    Hoist Quantity
    1
    14
    Lift Tube Quantity
    2
    15
    Pneumatic Pressure
    6KG
    16
    Water Pressure
    3KG
    17
    Maximum Furnace Temperature
    1250℃
    18
    Cooling Water Temperature
    20±2℃
    19
    Maximum Speed of Manipulator
    9R/Min.
    20
    Maximum Die Clamping Stroke
    370mm
    21
    Die Bath Angle
    0-90º
    22
    Ejector Pin Pressure
    540KG
    23
    Ejector Pin Stroke
    40mm
    24
    Pouring Pressure
    50-1200bar
    25
    Maximum Lift Weight of Hoist
    500kg

    1. Manipulators:

    1.1 Two manipulators operated independantly;

    1.2 Operating Parameters can be edited independently;

    1.3 Two manipulators either work at the same time; or one set changes die the other set under maintenance.

    2. Different die castings are equipped with sperated feeders, graphite baths and manipulators.

    3. Large furnace melting rate, capacity is up to 520KG/Hr, satisfy 2 manipulators working together.

    4. Drived by servo motor, with high precised, stable and efficiency performance.

    Video:https://www.youtube.com/watch?v=whYkgnMNCFw
