Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell

    Buy cheap Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell from wholesalers

    Buy cheap Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell from wholesalers
    • Buy cheap Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell from wholesalers
    • Buy cheap Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell from wholesalers

    Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell

    Ask Lasest Price
    Brand Name : DZ
    Model Number : HGM-A
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30sets/per momth
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell

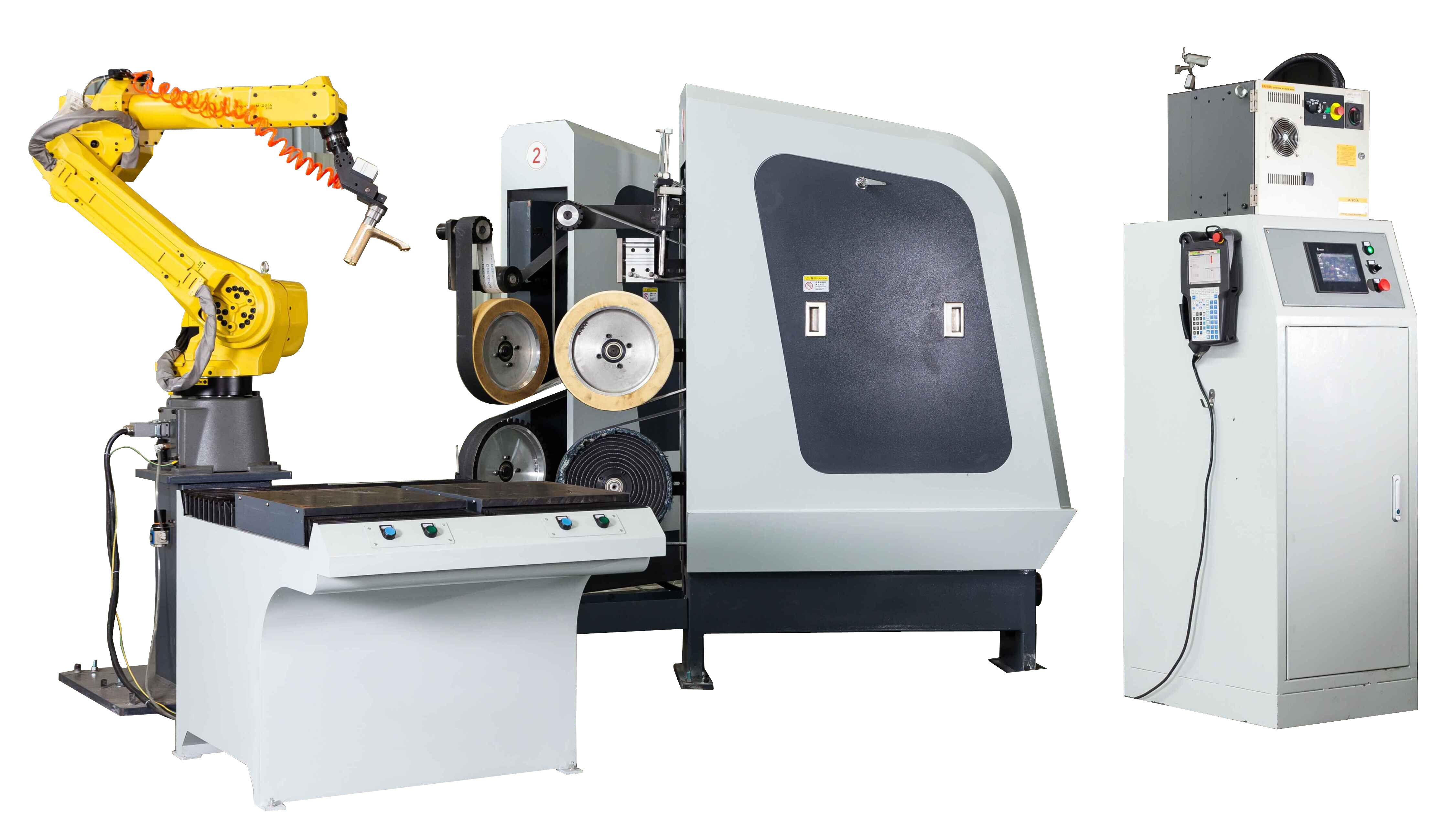

    Equipment Introduction


    1. The grinding system contains: 2 industrial robot cells; 4 grinding units; 2 loading stations and Control system.
    2. The robot is FANUC, M-20iA model with grinding moduel program system.
    3. Teach device pogramming system, with manually model to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program
    4. Full digital control, polishing program parameters can be saved and adjusted at any time.
    5. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.


    Technical Parameters:


    NO.DESCRIPTIONHGM-AHGM-B
    1Robotic CellFANUC- M-20iAFANUC-M-20iA
    2Power(KW)10.510.5
    3Voltage (V)380380
    4Grinding Belt Motor (KW)2*3.75KW2*3.75KW
    5Grinding Belt Size (MM)30003000
    6Grinding Belt Qty. ( pieces)44
    7Loading Station22
    8Footprint (MM)3400*29003800*2700

    Industrial Robotic Cell Auto-Grinding Machine, 2-stations Automatic Robot Grinding System, Faucets Grinding Plant


    Applications:

    The automatic polishing machines are born to replace the heavy-labor workmanship and improve quality stability, reduce production cost and for high yield benefits. Our machines have been offered to worldwidely in various industries:
    1. faucets and sanitary fittings,
    2. Locks and door knobs, plates and door handles,
    3.kitchen ware and flatware, table ware, stainless steel sinks, dishes, Knives and cutlery,
    4. stainless steel round tubes , squre bars, rectangular tube etc;
    5. aluminum profiles;
    6. automotive industry for wheels,
    7. metal furniture parts;
    8. valves and tools;
    9. watch and jewelry;
    10. medical implants;
    11. musical instruments... more applicaitons availability are welcomed to consult us.
