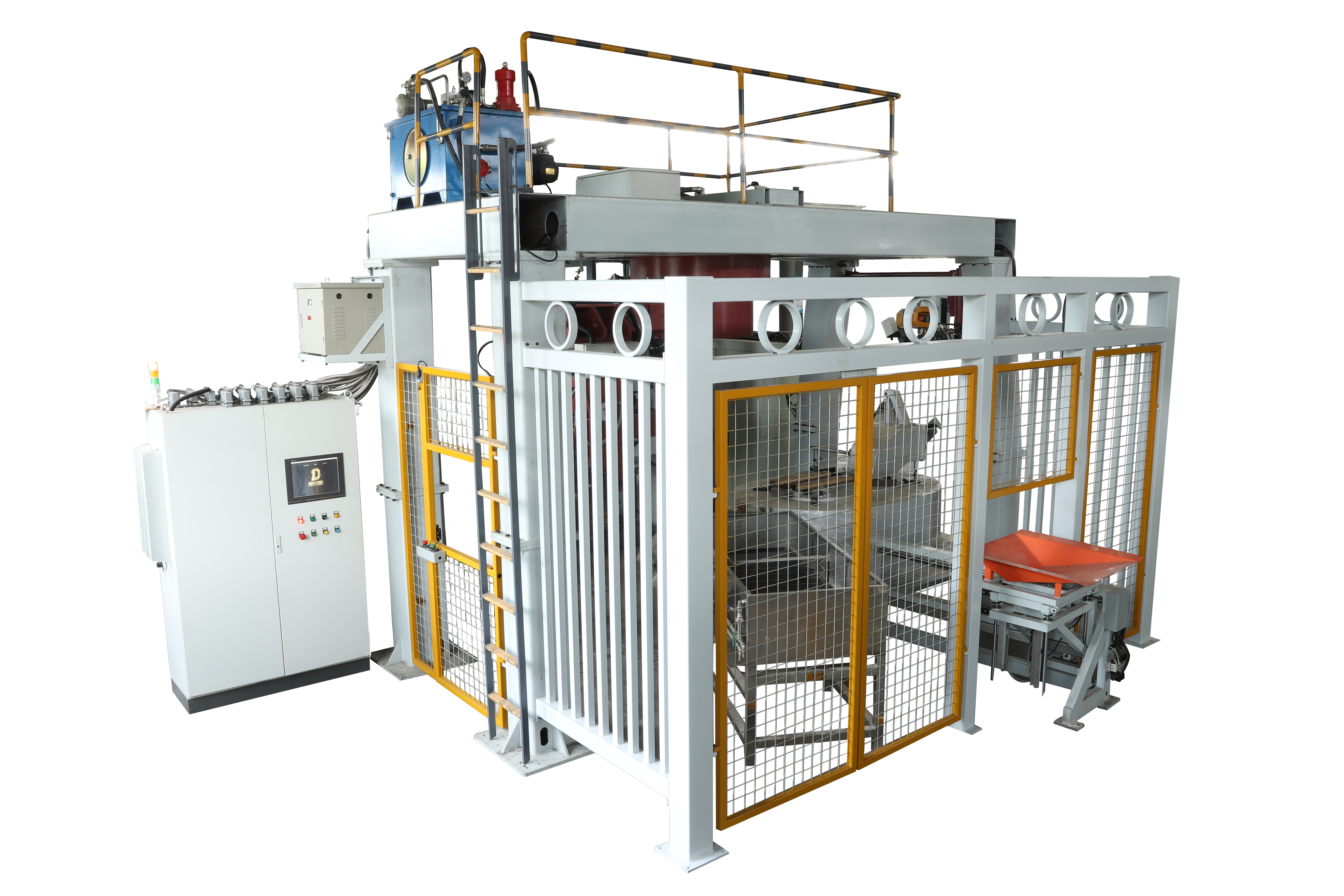

CE ISO Low Pressure Die Casting Machine Of Copper Alloy And Zinc Alloy

    Buy cheap CE ISO Low Pressure Die Casting Machine Of Copper Alloy And Zinc Alloy from wholesalers

    Buy cheap CE ISO Low Pressure Die Casting Machine Of Copper Alloy And Zinc Alloy from wholesalers
    • Buy cheap CE ISO Low Pressure Die Casting Machine Of Copper Alloy And Zinc Alloy from wholesalers

    CE ISO Low Pressure Die Casting Machine Of Copper Alloy And Zinc Alloy

    Ask Lasest Price
    Brand Name : DZ
    Model Number : LPDC
    Certification : ISO9001-2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10sets/per month
    Delivery Time : 2months
    • Product Details
    • Company Profile

    CE ISO Low Pressure Die Casting Machine Of Copper Alloy And Zinc Alloy

    CODEBASIC EQUIPMENTLPDC1-ManipulatorLPDC2-Manipulator
    1ManipulatorLight weight,hight running speed
    2Furnace1.The electric furnace remains stationary;Die automatic falling and smooth running,Casting quality is guaranteed. 2.Large melt content up to 1800kg;There's very little change in temperature after feed the stove
    3.The furnace is round and does not deform easily,It is effectual to keep warm, energy conservation.90KW was bable to satisfy 1-Manipulator
    1.The electric furnace remains stationary;Die automatic falling and smooth running,Casting quality is guaranteed. 2.Large melt content up to 2000kg;There's very little change in temperature after feed the stove.No need for frequent feeding. 3. Energy conservation:Two manipulator share an electric furnace can save the cost of electric furnace insulation. can save about 800 yuan one day
    3operating systemOne person operates a equipmentOne person operates 2-manipulators like One person operates 2 equipments and Can produce two different products at the same time
    4Riser tube3 riser tubes,be Able to meet different product process requirements.
    5Riser Tube heating method1. The riser tube on furance cover are with ceramic sealings; 2. Riser Tube heating method: Medium frequency electricity heating, power 60KW; average power consumption: 7KW; 3. Heating time till 900℃ ≈ 90 seconds 4. Contains water cooling system.
    6hydraulic system1.Components supplies with internationa high quality brands: SUN,REXROTH,YUKEN etc. 2.The components are special used, with performances of high stability, strong protection from contamination, suitable for water-based hydraulic oil operation etc. 3.The hydraulic oil ( Ethylene glycol ) works at low temperature, stable quality, not get deteriorated. 4.Servo motor driving, no vibration. saves 40% of the electricity.
    7Die Cleaning Chamber1.Die Cleaning Chamber: shot blasting device (copper powder blasting) for the cleaning of the dies. 2.The dies can be moved to cleaning chamber automatically for cleaning process @ heavy oxidized contaminations condition.
    8Automatic picking1.Receiving car: with performances of moving up-down; forward & backward; 2.Transport the casting products to storage vehicles directly.
    9Change the mouldQuick die change flange, 2 mins by munually ,There is a dedicated mold change station
    10FunctionIt has the function of low-pressure casting of copper alloy and zinc alloy.

    Video:https://www.youtube.com/watch?v=whYkgnMNCFw
