    Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine

    Ask Lasest Price
    Brand Name : DZ
    Model Number : LPDC
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 sets/per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine

    Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine


    Advantage:


    1. Quality assurance, less impact from human factors.

    2. Low labor intensity and good production environment.

    3. high productivity.

    4. Metal burns are 3% less. (Annual copper volume 2000T enterprises can save 60T copper).

    5. Suitable for thin wall and complex parts casting.

    6. The casting is dense and the quality is stable.

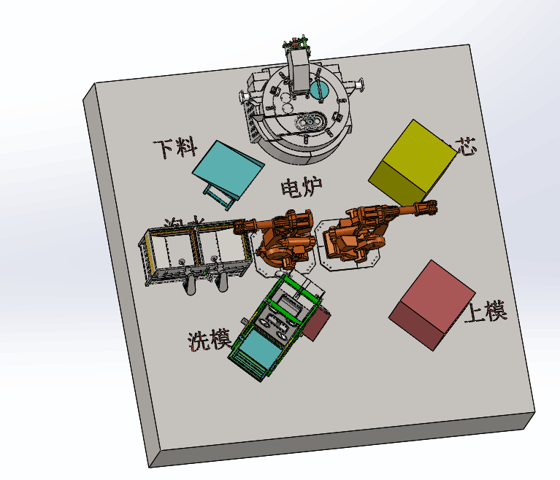

    7. Two manipulators can be operated independently, the parameters are independently adjustable, and two can be operated at the same time, or one machine can be changed or maintained.

    8. Two receiving vehicles, two stone black slots correspond to different robots, and different products are discharged separately.

    9. The melting rate of the electric furnace is 520Kg/H, which can meet the simultaneous production of two robots, saving energy and environmental protection.

    10. Rotary servo drive, precision low backlash reducer drive, smooth and efficient.


    2- Manipulators Low Pressure Die Casting Machine Technical Parameters


    Code


    Item


    Specifications

    1

    Dimension ( L*W*H)

    7000*7000*3680

    2

    Machine Power

    180KW

    3

    Rated Voltage

    380V

    4

    Manipulator Quantity

    2

    5

    Maximum Weight of Die

    180KG

    6

    Maximum Dimension of Die

    500*400*250

    7

    Furnace Power

    2*80KW

    8

    Furnace Melting Capacity

    520Kg

    9

    Furnace Quantity

    1

    10

    Die Cleaning Box Quantity

    1

    11

    Feeder Quantity

    1

    12

    Blackwash Tank Quantity

    1

    13

    Hoist Quantity

    1

    14

    Lift Tube Quantity

    2

    15

    Pneumatic Pressure

    6KG

    16

    Water Pressure

    3KG

    17

    Maximum Furnace Temperature

    1250℃

    18

    Cooling Water Temperature

    20±2℃

    19

    Maximum Speed of Manipulator

    9R/Min.

    20

    Maximum Die Clamping Stroke

    370mm

    21

    Die Bath Angle

    0-90º

    22

    Ejector Pin Pressure

    540KG

    23

    Ejector Pin Stroke

    40mm

    24

    Pouring Pressure

    50-1200bar

    25

    Maximum Lift Weight of Hoist

    500kg

    Click the link to view video:

    https://www.youtube.com/watch?v=zmWTnfFq-mM
