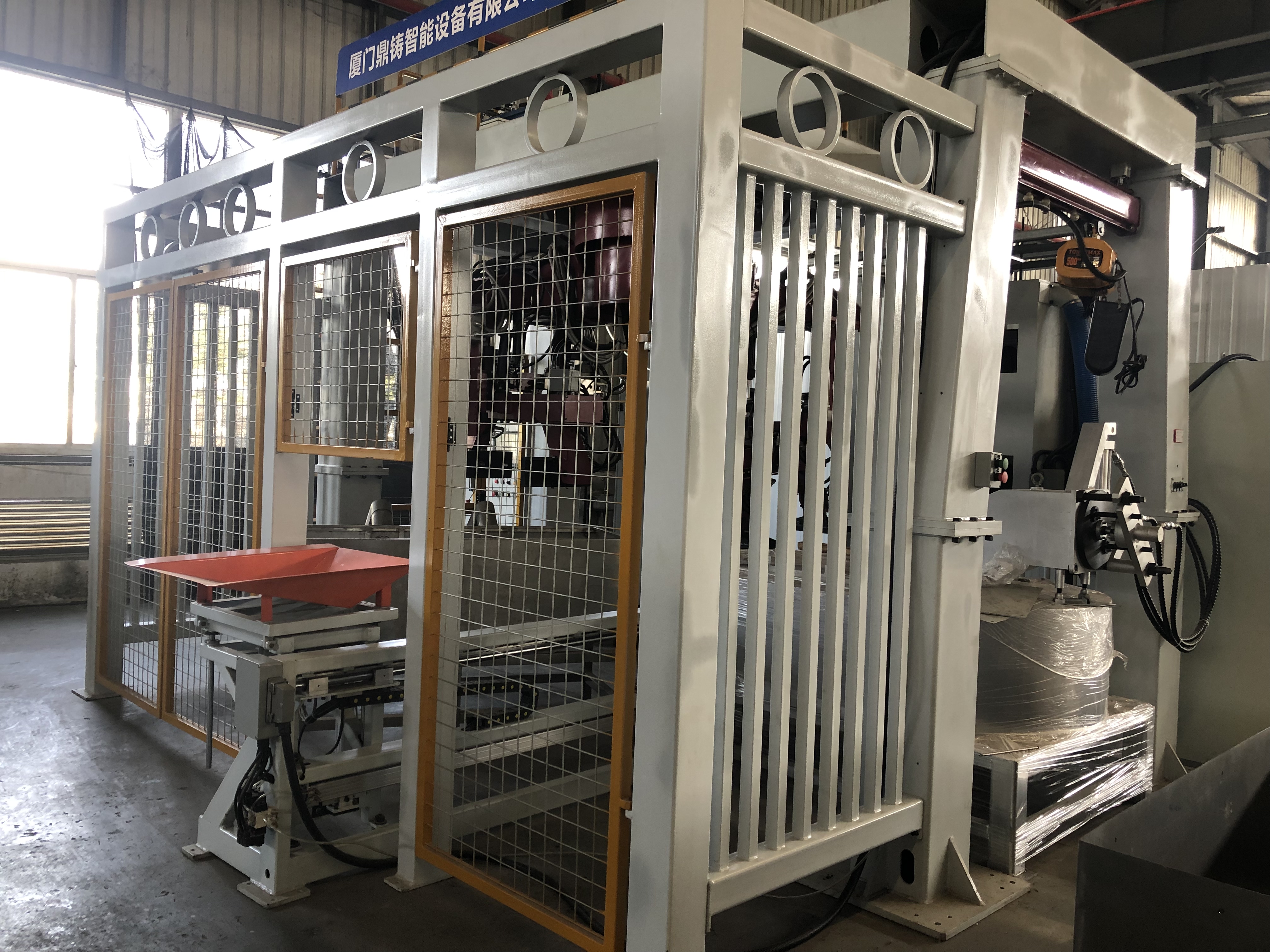

60 Ton 120 Ton Aluminium Die Casting Machine / Brass Die Casting Machine

The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories. To fulfill the different capacity requirement of customers, we have1-manipulator and 2-manipulators models for customer options.

Advanages:

1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;

2. High capacity ranges 400~450 castings per shift (8hrs);

3.Quick die change flange, 5 mins by munually ;

4. Furnace heating method: gas burner is standard and elctricity for option;

5. Max. die diemension 550*400mm;

6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;

7. Zinc Oxide dust cleaning unit for furnace cleaning;

8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;

9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);

10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)

Low-pressure casting equipment is generally composed of main engine, hydraulic system, holding furnace, liquid pressure device, electrical control system and casting cooling system.

1.The low-pressure casting main machine is generally composed of mold closing mechanism, static mold core pulling mechanism, frame, casting ejection mechanism, parts taking mechanism, safety limit mechanism and other parts.

2.The heat preservation furnace mainly has the crucible type heat preservation furnace and the melting pool type heat preservation furnace two kinds.There are two types of crucible, graphite crucible and cast iron crucible.The melting pool type heat preservation furnace adopts the overall knotting process of refractory materials in the furnace chamber, and the silicon carbon rod radiation heating and heat preservation, which has the characteristics of large capacity, long service life and simple maintenance, and is extremely beneficial to the continuous production requirements, and is widely used by the modern low-pressure casting machine.

There are two kinds of connection between the heat preservation furnace and the main machine: fixed connection type and lifting and moving type.

3.The lifting pipe is a channel for diversion and shrinkage, which is sealed and connected with the crucible lid in a removable way to form a sealed container under pressure.Under the action of process pressure, the metal liquid is filled and solidified by the rising liquid pipe.When the pressure is relieved, the unsolidified alloy liquid falls back to the crucible through the riser, so it is very important to correctly design and use the low-pressure casting riser.

4.Low pressure casting, the key to obtain good casting is to correctly control the filling and pressurizing of the casting mold.According to the requirements of different castings, the liquid level pressure system should be able to be adjusted arbitrarily within the range of process parameters, the work should be stable and reliable, the structure should be convenient for maintenance.

Click the link to view video:

https://www.youtube.com/watch?v=zmWTnfFq-mM

Xiamen DingZhu(DZ) Intelligent Equipment Co.,Ltd was founded in 2016, which was principally engaged in research,development and manufacture of automatically equipment for foundry industry used in plumping hardware,sanitary ,car spares ,valves etc.We provide automatic core shooting machine,gravity die casting machie,automatic Low Pressure Die Casting machine (LPDC), robotic cell grinding and polishing machines.

Above equipments are based on the comprehensive similar product at Domestic and foreignand independent development to adapt to Domestic and foreign of special.

DZ’s factory located in NO.36 Qingxi Road,Guankou Town,Jimei District Xiamen City,Fujian Province.It just takes about 30 minutes to the Gaoqi(Xiamen) Airport,nearly seaport and highway ,so the traffic is very convenient.

Our working process includes a feasibility study and definition of the project and the design, manufacture, predelivery, training, set up and start up and after-sales service.

Corporate Culture

Dingzhu’s Vision: to be the worldwide famous brand supplier of providing total solutions to customers requirement.
Dingzhu’s Mission: to improve labors tough working environment, enhance work efficiency, completely help owners to reduce production cost.
Dingzhu’s Philosophy: human-oriented, honest, innovative and make the greatest contribution to society.
Dingzhu’s Service: with excellent technology and products, professional dedication to serve customers.
Dingzhu’s Value: innovation, advanced technology’s R&D, serving China and worldwide’s manufacturing industries.

ADVANTAGES OF COMPANY

1) Most competitive price and quality.

2) Auto working, easy operation, save labour.

3) Short delivery time.

4) Import and Export License.

5)After-sales service:Engineers available to serve overseas and Instant service on line.

DZ is looking forward to cooperating with your company and be an active part to your success.

Our Team

Our Factory

Iran's coustomers visit our factory

India's customers visted our factory
