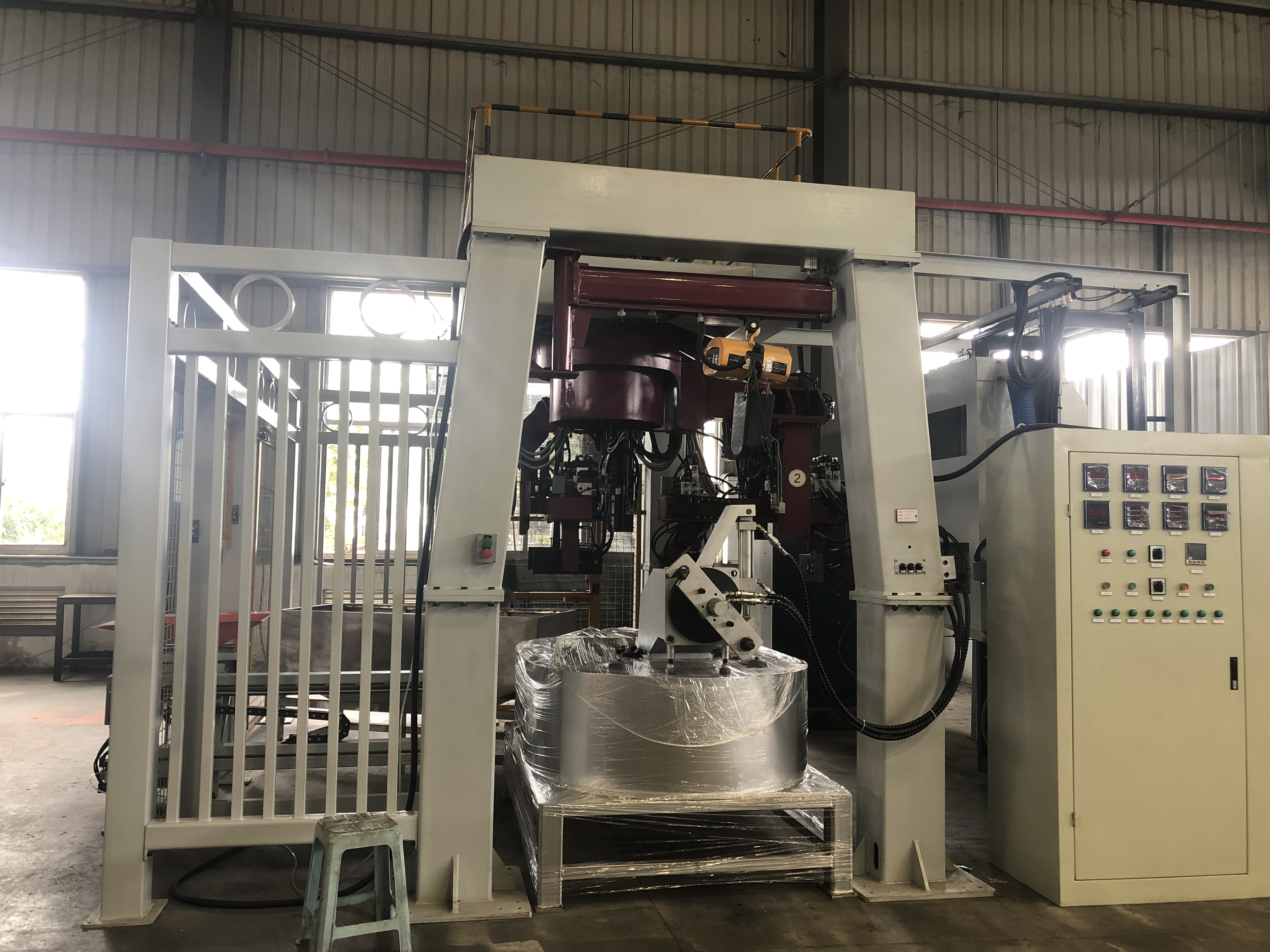

Metal Faucet Automatic Casting Machine , Low Pressure Sand Casting Machine

The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories. To fulfill the different capacity requirement of customers, we have1-manipulator and 2-manipulators models for customer options.

Advanages:

1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;

2. High capacity ranges 400~450 castings per shift (8hrs);

3.Quick die change flange, 5 mins by munually ;

4. Furnace heating method: gas burner is standard and elctricity for option;

5. Max. die diemension 550*400mm;

6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;

7. Zinc Oxide dust cleaning unit for furnace cleaning;

8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;

9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);

10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)

Technical Parameters

Dimensions ( L*W*H) :5000*4600* 3400

Machine Power:125KW

Rated Voltage :380V

Manipulator Quantity :1

Maximum Weight of Die :180KG

Maximum Dimension of Die:500*400*250

Furnace Power:3*35KW

Furnace Melting Capacity:350Kg

Furnace Quantity:1

Die Cleaning Box Quantity:1

Feeder Quantity:1

Blackwash Tank Quantity:1

Hoist Quantity:1

Lift Tube Quantity:3

Pneumatic Pressure:6KG

Water Pressure:3KG

Maximum Furnace Temperature:1250℃

Cooling Water Temperature:20±2℃

Maximum Speed of Manipulator:20m/ Min.

Maximum Die Clamping Stroke:370mm

Die Bath Angle:0-90º

Ejector Pin Pressure:540KG

Ejector Pin Stroke:40mm

Pouring Pressure:50-1200bar

Maximum Lift Weight of Hoist:500kg

Click the link to view video:

https://www.youtube.com/watch?v=zmWTnfFq-mM

Xiamen DingZhu(DZ) Intelligent Equipment Co.,Ltd was founded in 2016, which was principally engaged in research,development and manufacture of automatically equipment for foundry industry used in plumping hardware,sanitary ,car spares ,valves etc.We provide automatic core shooting machine,gravity die casting machie,automatic Low Pressure Die Casting machine (LPDC), robotic cell grinding and polishing machines.

Above equipments are based on the comprehensive similar product at Domestic and foreignand independent development to adapt to Domestic and foreign of special.

DZ’s factory located in NO.36 Qingxi Road,Guankou Town,Jimei District Xiamen City,Fujian Province.It just takes about 30 minutes to the Gaoqi(Xiamen) Airport,nearly seaport and highway ,so the traffic is very convenient.

Our working process includes a feasibility study and definition of the project and the design, manufacture, predelivery, training, set up and start up and after-sales service.

Corporate Culture

Dingzhu’s Vision: to be the worldwide famous brand supplier of providing total solutions to customers requirement.
Dingzhu’s Mission: to improve labors tough working environment, enhance work efficiency, completely help owners to reduce production cost.
Dingzhu’s Philosophy: human-oriented, honest, innovative and make the greatest contribution to society.
Dingzhu’s Service: with excellent technology and products, professional dedication to serve customers.
Dingzhu’s Value: innovation, advanced technology’s R&D, serving China and worldwide’s manufacturing industries.

ADVANTAGES OF COMPANY

1) Most competitive price and quality.

2) Auto working, easy operation, save labour.

3) Short delivery time.

4) Import and Export License.

5)After-sales service:Engineers available to serve overseas and Instant service on line.

DZ is looking forward to cooperating with your company and be an active part to your success.
