    Fully Automatic Brass Die Casting Machine With Rotary Portal Two Manipulators / Furnace

    Fully Automatic Brass Die Casting Machine With Rotary Portal Two Manipulators / Furnace


    I. Feature


    1. Fully automatic machine with rotary portal, two manipulators and one furnace.

    2. Stands out for its two independent drive units for each manipulator. During the stop of one of the two manipulators for cleaning or die charging, the second manipulator continues its work.


    II.Technical Parameters



    2- Manipulators Low Pressure Die Casting Machine Technical Parameters

    Code

    Item

    Specifications
    1Dimension ( L*W*H)7000*7000*3680
    2Machine Power180KW
    3Rated Voltage380V
    4Manipulator Quantity2
    5Maximum Weight of Die180KG
    6Maximum Dimension of Die500*400*250
    7Furnace Power2*80KW
    8Furnace Melting Capacity520Kg
    9Furnace Quantity1
    10Die Cleaning Box Quantity1
    11Feeder Quantity1
    12Blackwash Tank Quantity1
    13Hoist Quantity1
    14Lift Tube Quantity2
    15Pneumatic Pressure6KG
    16Water Pressure3KG
    17Maximum Furnace Temperature1250℃
    18Cooling Water Temperature20±2℃
    19Maximum Speed of Manipulator9R/Min.
    20Maximum Die Clamping Stroke370mm
    21Die Bath Angle0-90º
    22Ejector Pin Pressure540KG
    23Ejector Pin Stroke40mm
    24Pouring Pressure50-1200bar
    25Maximum Lift Weight of Hoist500kg

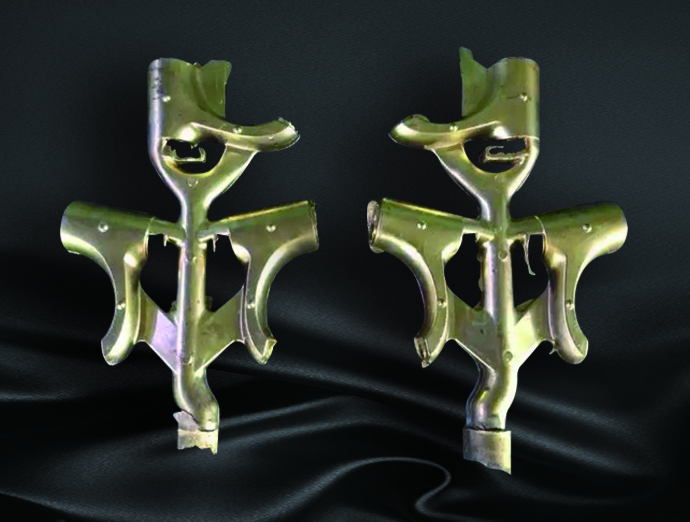

    Application

    Click the link to view video:

    https://www.youtube.com/watch?v=zmWTnfFq-mM
