    Robot Operation Automatic Grinding Machine For Faucet Sanitary Ware CE Certified

    Ask Lasest Price
    Brand Name : DZ
    Model Number : 20GB
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30units/per month
    Delivery Time : 2weeks
    • Product Details
    • Company Profile

    Robot Operation Automatic Grinding Machine For Faucet Sanitary Ware CE Certified

    Robot Operation Automatic Grinding Machine For Faucet Sanitary Ware CE Certified

    Robot operation faucet sanitary ware ,auto parts metal ,lockset and doorknob,thread processing grinding and polishing machine.


    1.1 Built-in professional polishing program module 1.2 Programming mode: the program of the demonstrator is programmed. Manual mode is adopted to simulate manual polishing and record track, which can be automatically run according to this path. 1.3 Full digital control, the program can be saved and invoked at any time.
    1.4 The functions and parameters are set by the Chinese display touch control panel, which is easy to operate and has the function of fault code display for troubleshooting and maintenance.

    II: EQUIPMENT STRUCTURE

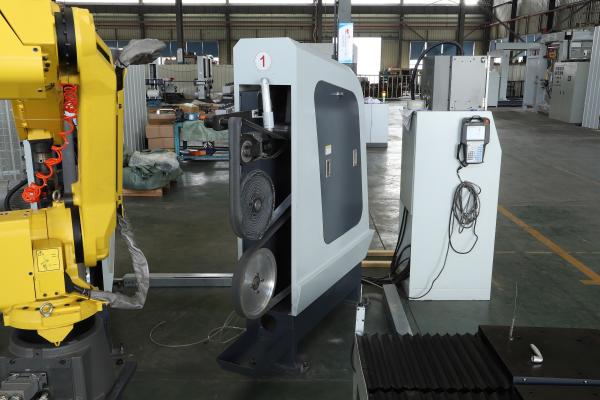

    The equipment consisting of main components:Sand Belt Machine ,Feed Table,Sand belt machine control system,manipulator,fixture ,automatic feed tray and contact wheeland etc.


    NO.QUANTITYDESCRIPTION
    12Sand Belt Machine 1.1The working wheel is equipped with denim buren standard, which can realize a variety of sand belt hanging method, and meet the requirements of different product grinding process 1.2 The mould function in the middle ensures the polishing of complex products 1.3 Sand belt wear control system, improve machining stability and sand belt life 1.4 sand belt break detection function, automatic identification of sand belt working state 1.5Foam bar mechanism or soap mechanism, reduce fine abrasive belt sticky sand, heat and other problems
    21Feed Table
    2.1 The feeding table is set with double working positions, high positioning accuracy and flexible floating working energy
    2.2 After the processing is completed, the machine will quit automatically and prompt the operator to change the product. 2.3 Each station can hold 10-20 pieces of products
    31Sand belt machine control system
    41manipulator
    51contact wheel
    61fixture ,automatic feed tray

    III: TECHNICAL PARAMETERS

    To fulfill the different product weight and sizere quirement,different requirements for belt sander of customers,we have 4 models for customer options.
     20GA Specifications20GBSpecifications35GSpecifications50GSpecifications
    Robot CellFUNACFUNACFUNACFUNAC
    Robot Model20iA/2020iA/2020iA/3520iA/50
    Rated Voltage380V380V380V380V
    Machine Power7.6KW10.5KW11KW16KW
    Sand Belt Machine Quantity1222
    Sand Belt Quantity4444
    Sand Belt Dimensions3000mm×43000mm×44000mm×44000mm×4
    Feed Table1111
