    Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel

    Ask Lasest Price
    Brand Name : DZ
    Model Number : NC-62
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

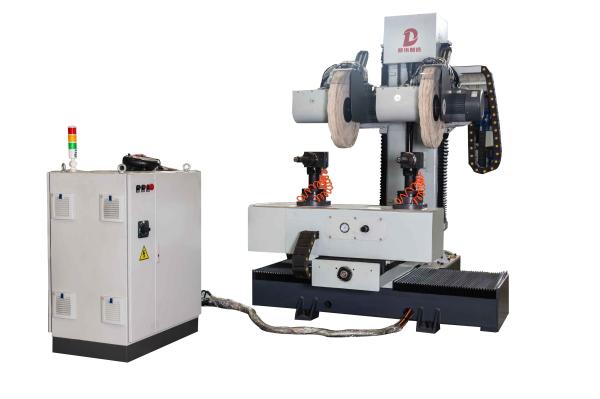

    Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel

    Multifunction CNC Polishing Machine / Brass Metal Polish Wheel Machine For Stainless Steel


    Features:


    The main electrical control system adopts 6-axes DZ servo CNC system control (main control screen capture positioning, coordinate digital setting, speed digital setting, software over travel protection, program function modularization, simple idiot style programming, etc.)
    In mechanical structure, servo motor is used to drive the worm reducer gear to control the motion of the polishing unit head and workpiece (U, V, W axial direction) and the servo motor drives the slide table (X, Y, Z axial).
    The machine has 2 polishing unit heads, which can polish 2 work pieces in one cycle time; Production output up to 4PCS / 30 ~ 50 seconds (depending on the product and process);
    It is suitable for complex shape handle products, pipe products and other regular shape products. 2. Total power is 16.25KW, including: 2 polishing unit heads with 5.5KW power motor each, XYZVW axis compensation motor 0.75KW, U axis compensation motor 1.5KW.


    TECHNICAL PARAMETERS


    Code

    Item

    Specifications-2station

    1

    Dimensions (L*W*H)

    3000*3100*2900mm

    2

    Machine Power

    16.5KW

    3

    Rated Voltage

    380V

    4

    Max. Diameter of polishing wheel

    600mm

    5

    Min. Diameter of polishing wheel

    400mm

    6

    X-Axis travel (mm)

    1200

    7

    Y-Axis travel (mm)

    1100

    8

    Z-Axis travel (mm)

    700

    9

    U-Axis travel (mm)

    ±90°

    10

    V-Axis travel (mm)

    ±360°

    11

    W-Axis travel (mm)

    ±360°


    Layout



    Click the link to view video:

    https://www.youtube.com/watch?v=2aHETEO5BG8&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=20
