CHARACTERISTIC

In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.

Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.

To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable siemens control.

ADVANTAGES

1. Cost-efficient production

• Multiple cavity dies
• Reduced melting loss
• Increased yield (less circulating material)
• One-man operation
• Cost savings in subsequent stages of manufacture
• For robotic grinding low pressure die casting is a must

2. Humanization of the workstation

• Ergonomic design of the workstation
• Minimizing of smoke, heat, noise and danger of accidents

3. High quality castings and high-precision repeatability

• Automated casting
• Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube

1-Manipulator

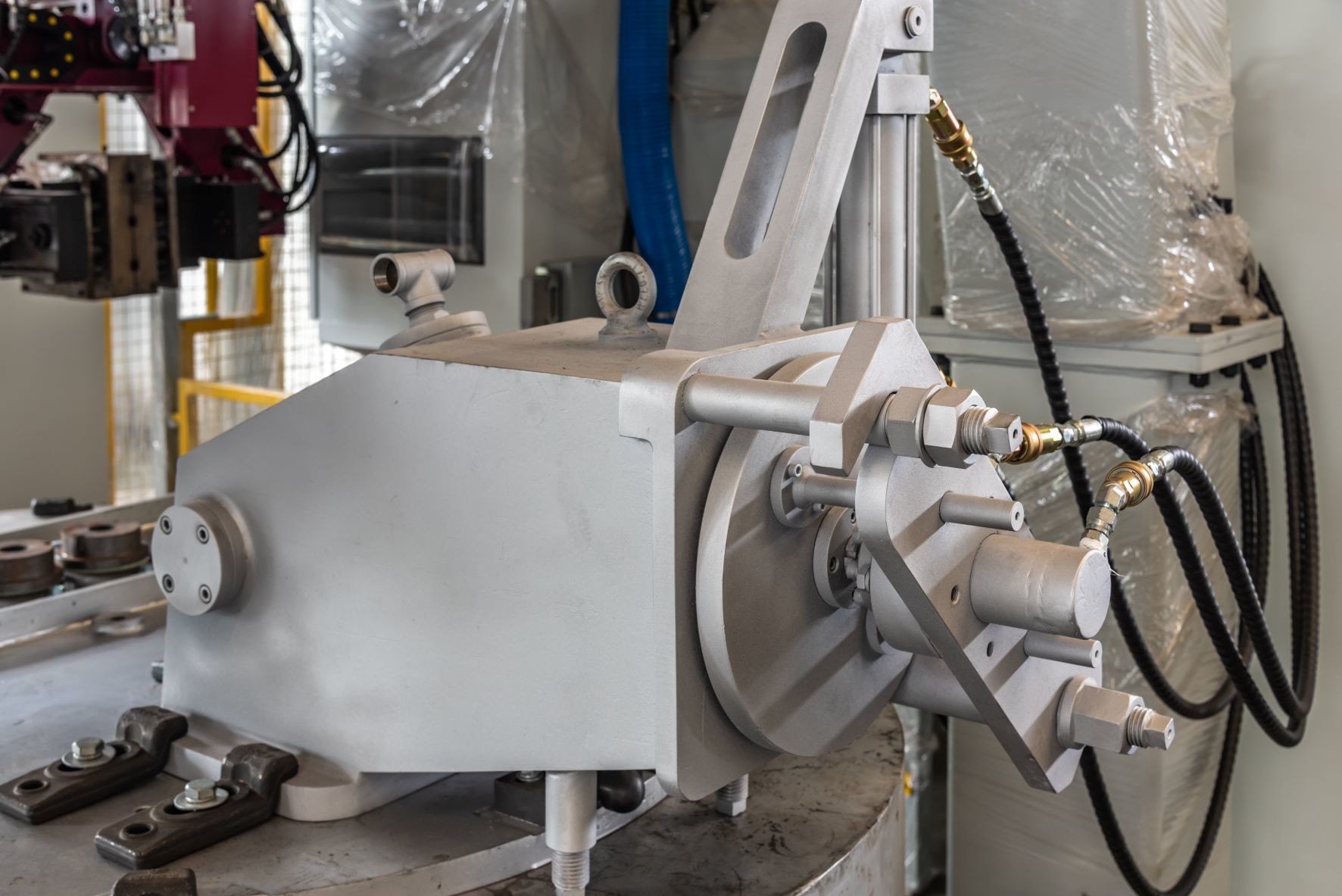

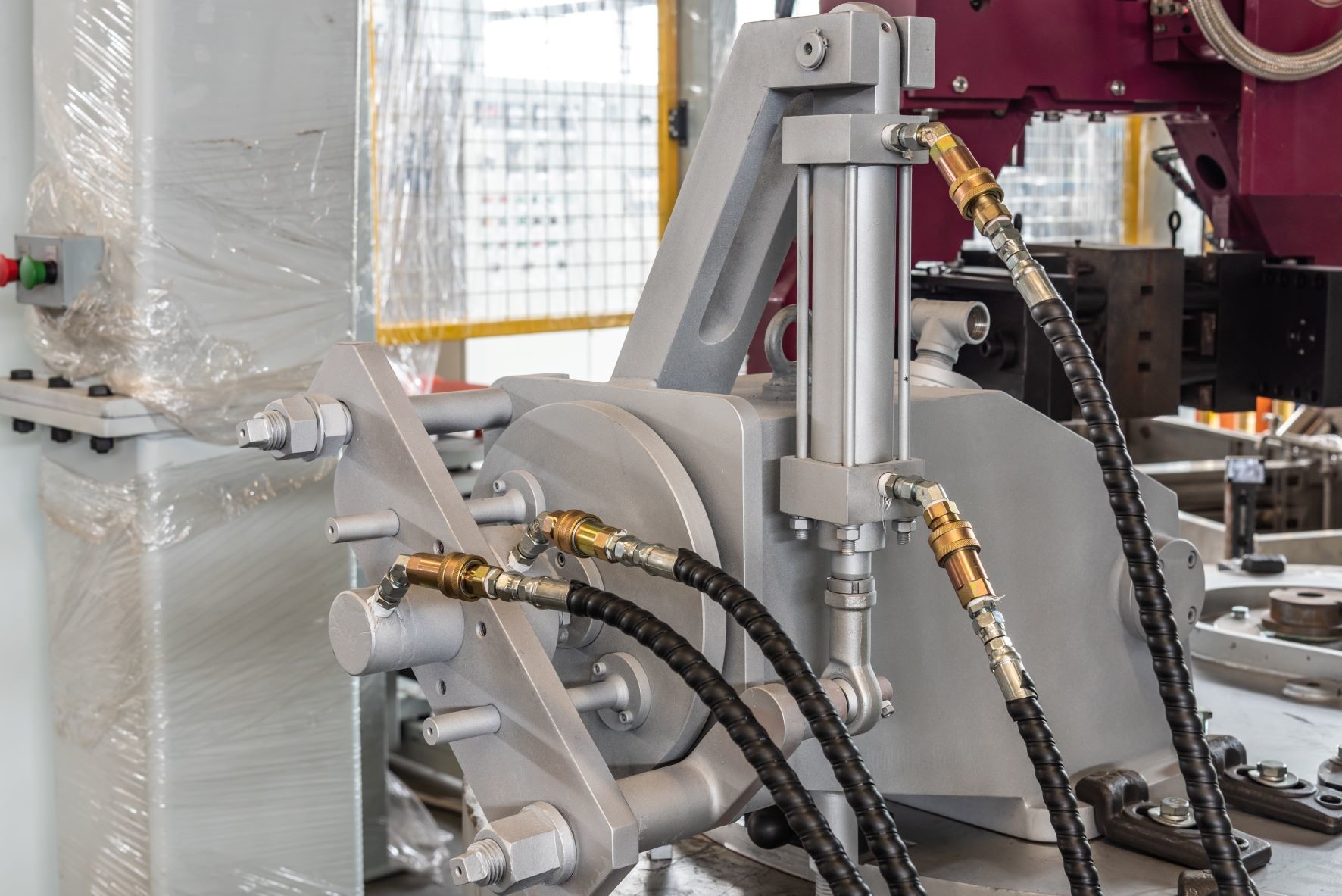

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.

1) Capacity per shift (8 hours): approx. 380 castings

2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device；

B. Manually setting of the cores；

C. Max die dimensions: 550 x400 mm；

D. Quick die change flanges；

E. Simple furnace control electrics；

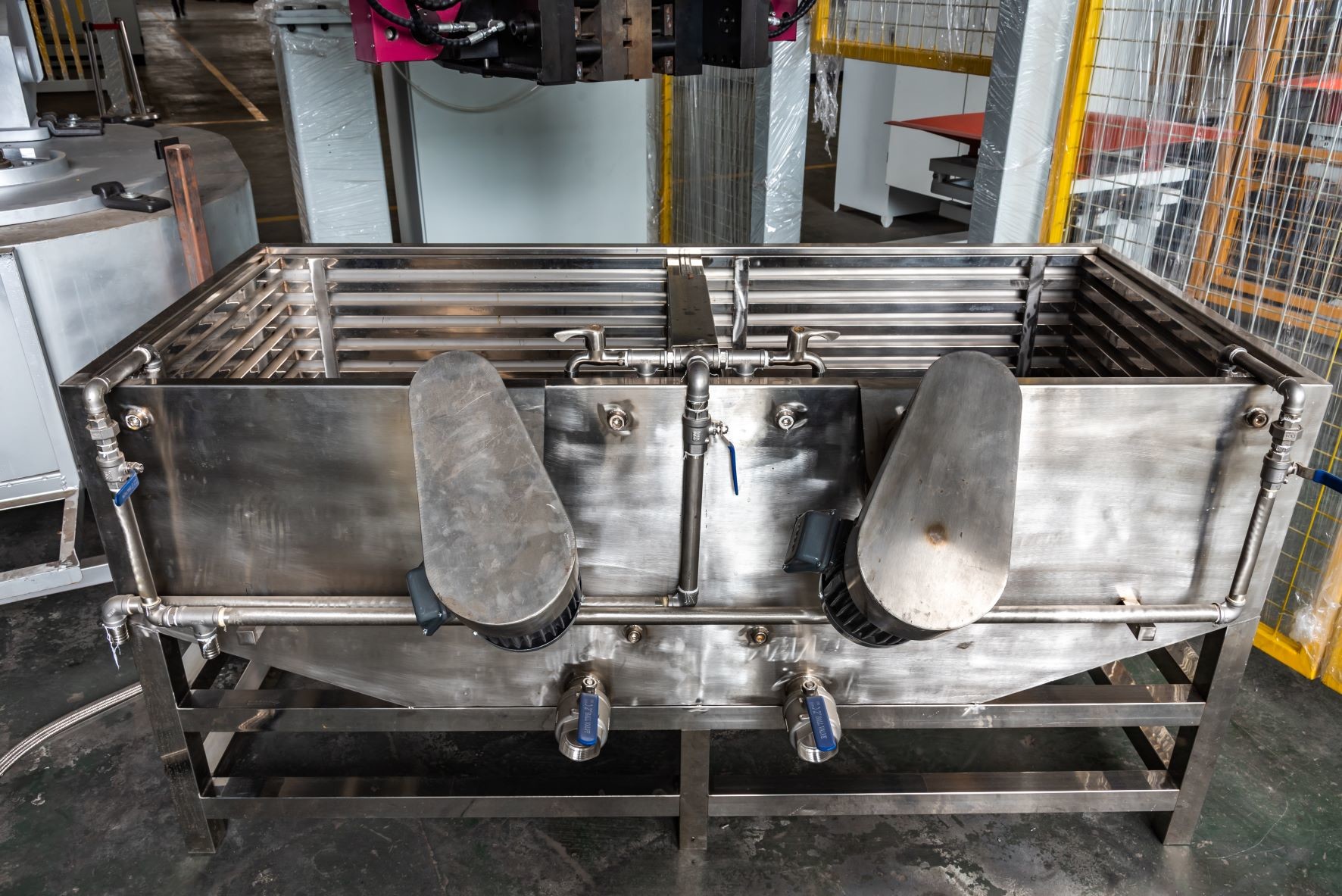

F. Die cooling and coating in a blackwash bath；

Xiamen DingZhu(DZ) Intelligent Equipment Co.,Ltd was founded in 2016, which was principally engaged in research,development and manufacture of automatically equipment for foundry industry used in plumping hardware,sanitary ,car spares ,valves etc.We provide automatic core shooting machine,gravity die casting machie,automatic Low Pressure Die Casting machine (LPDC), robotic cell grinding and polishing machines.

Above equipments are based on the comprehensive similar product at Domestic and foreignand independent development to adapt to Domestic and foreign of special.

DZ’s factory located in NO.36 Qingxi Road,Guankou Town,Jimei District Xiamen City,Fujian Province.It just takes about 30 minutes to the Gaoqi(Xiamen) Airport,nearly seaport and highway ,so the traffic is very convenient.

Our working process includes a feasibility study and definition of the project and the design, manufacture, predelivery, training, set up and start up and after-sales service.

Corporate Culture

Dingzhu’s Vision: to be the worldwide famous brand supplier of providing total solutions to customers requirement.
Dingzhu’s Mission: to improve labors tough working environment, enhance work efficiency, completely help owners to reduce production cost.
Dingzhu’s Philosophy: human-oriented, honest, innovative and make the greatest contribution to society.
Dingzhu’s Service: with excellent technology and products, professional dedication to serve customers.
Dingzhu’s Value: innovation, advanced technology’s R&D, serving China and worldwide’s manufacturing industries.

ADVANTAGES OF COMPANY

1) Most competitive price and quality.

2) Auto working, easy operation, save labour.

3) Short delivery time.

4) Import and Export License.

5)After-sales service:Engineers available to serve overseas and Instant service on line.

DZ is looking forward to cooperating with your company and be an active part to your success.
