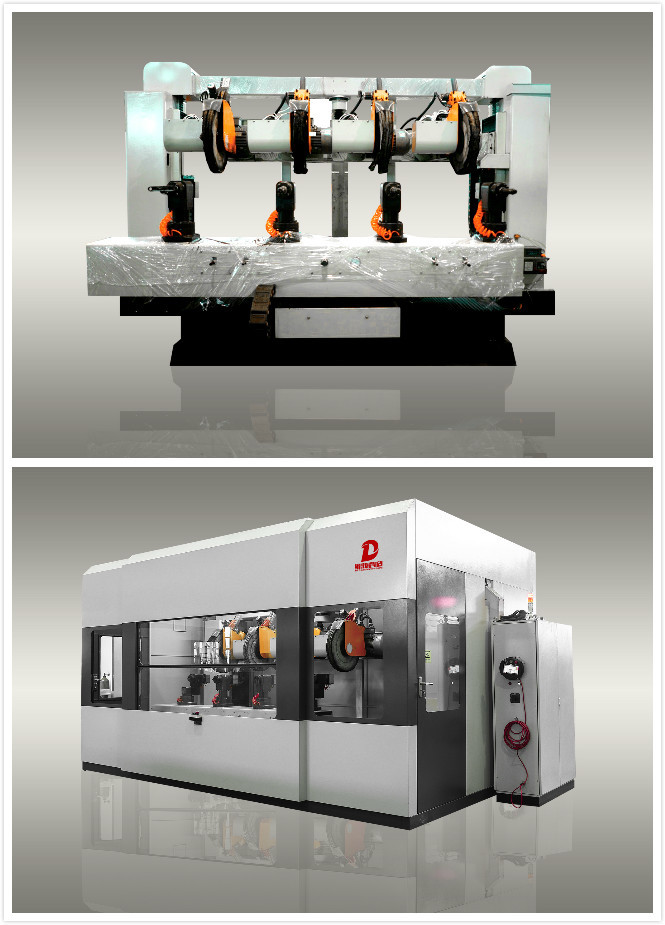

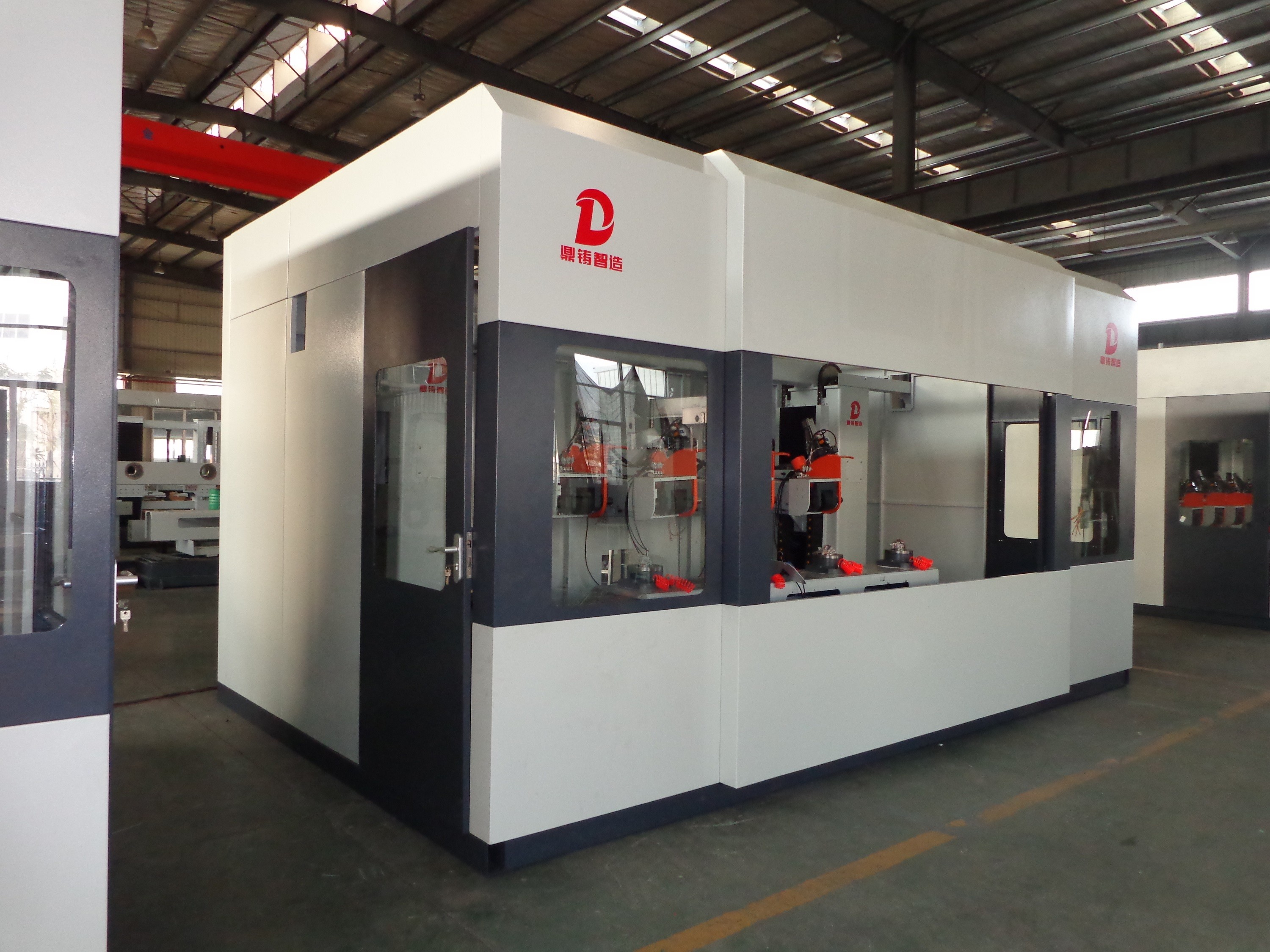

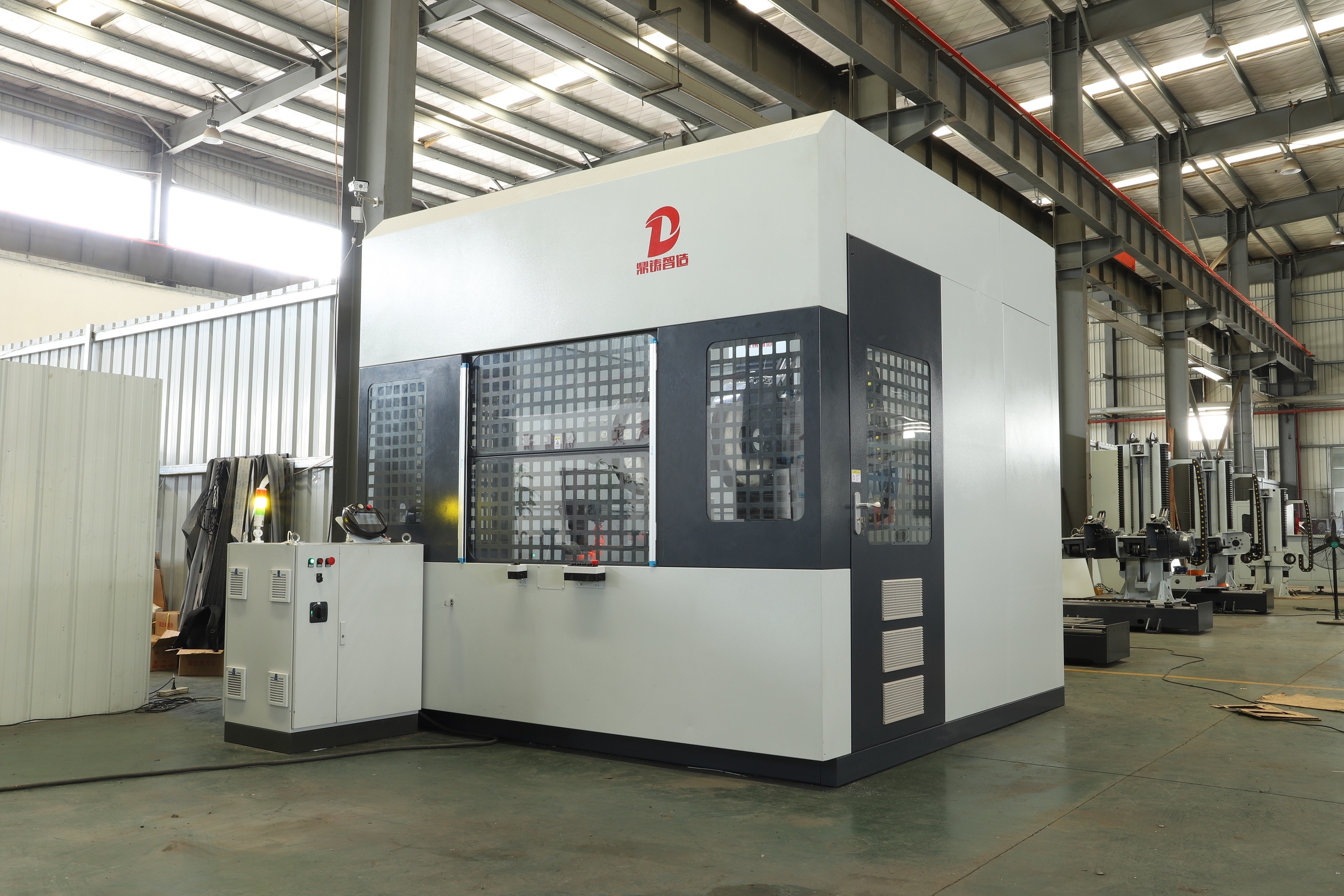

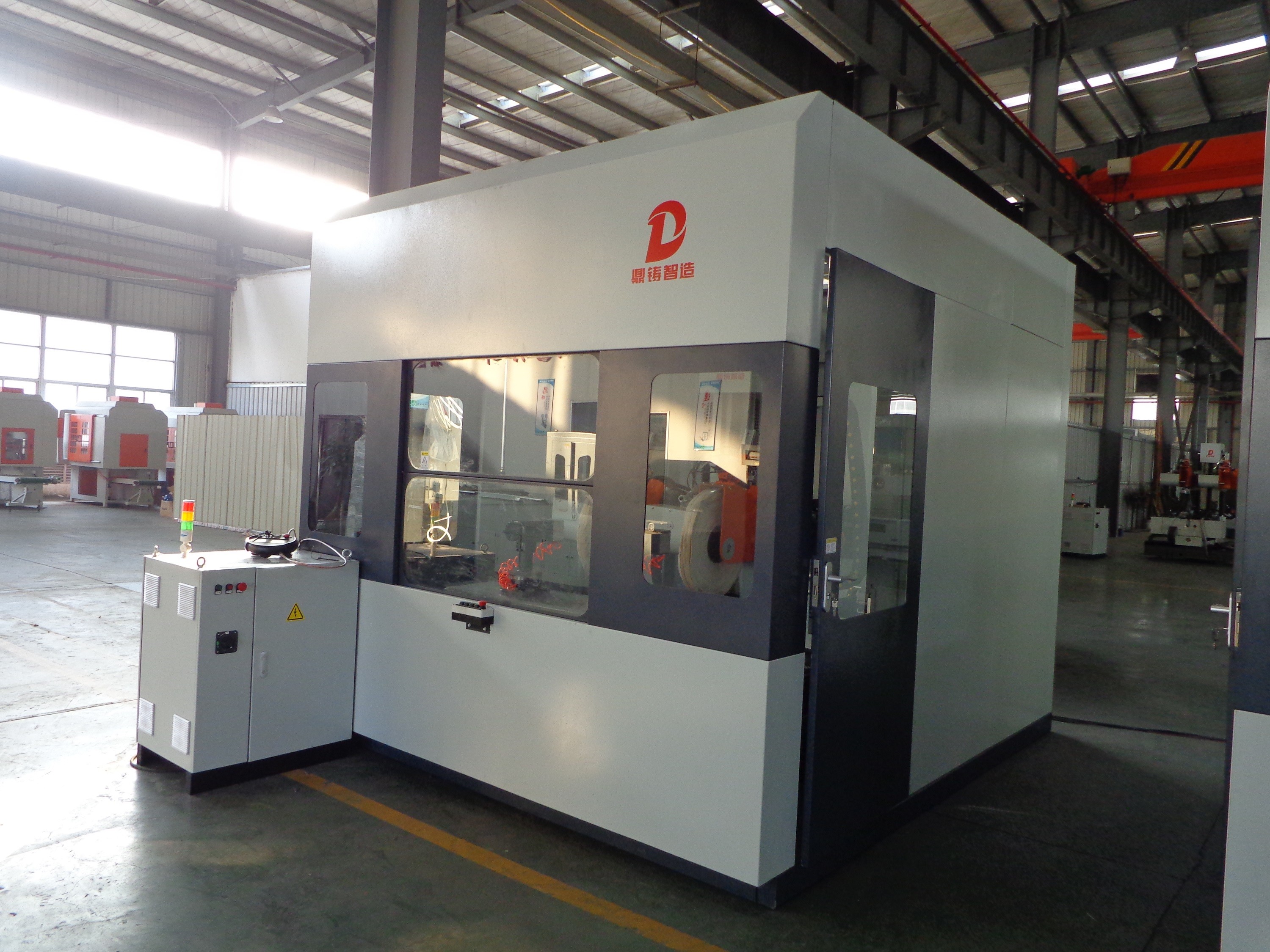

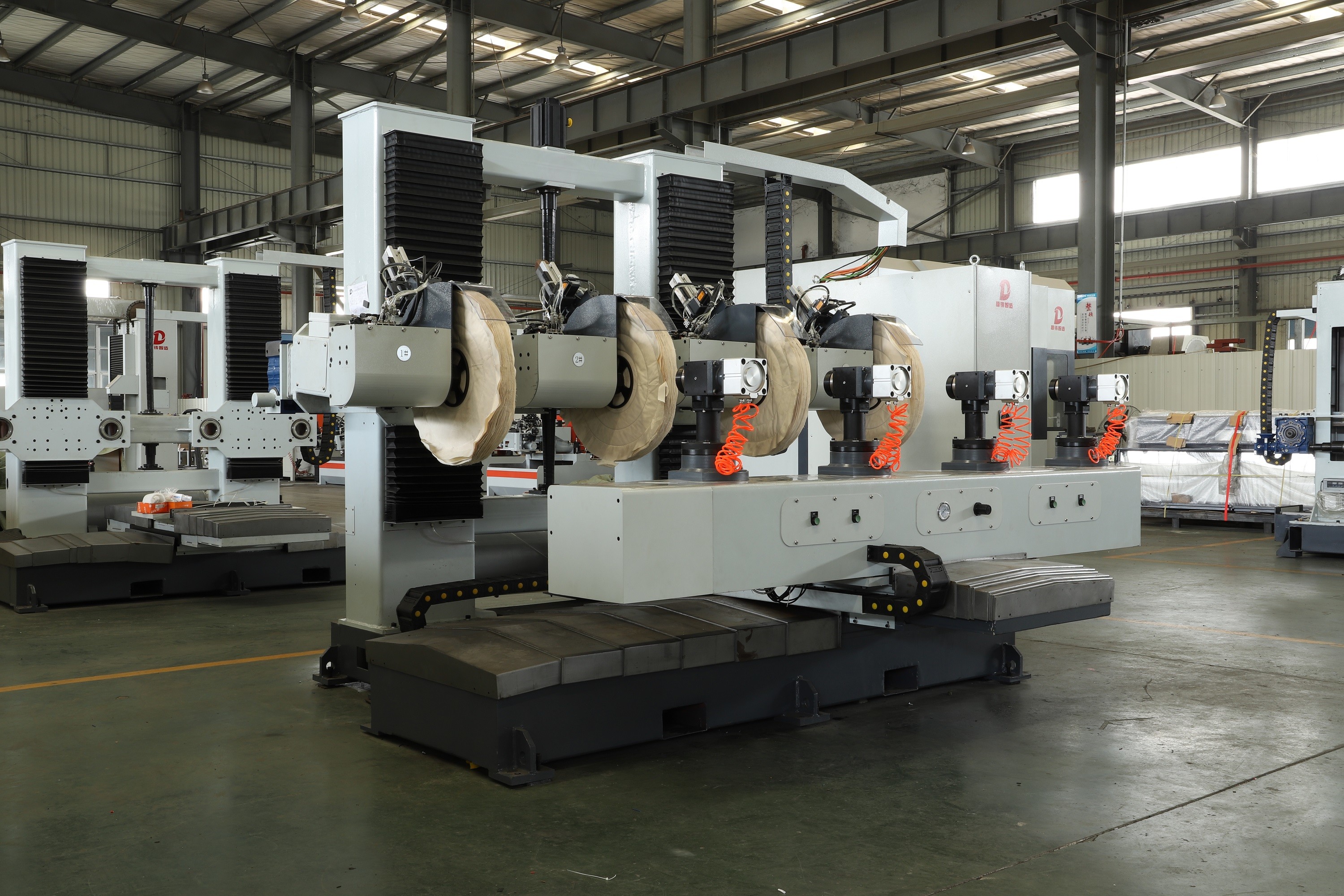

    35KW CNC 6 Axis SS Polishing Machine With Interactive Teach System

    Ask Lasest Price
    Brand Name : DZ
    Model Number : NC-64
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 units/per month
    Delivery Time : 2weeks
    • Product Details
    • Company Profile

    35KW CNC 6 Axis SS Polishing Machine With Interactive Teach System

    Fork Spoon Automatic Metal Tank Tube Polish Machine For Stainless Steel


    Rotary Automatic Polishing Machine Easy Operation No Need Edit Program No Need Dusting No Need Debug

    Metals Brass Tube Fitting Grinding Polishing ROBOT Automatic Polishing Machine For Stainless Steel

    Automatic Polishing Machine CNC 6 Axis Faucet Polishing Machine


    Precision polishing.

    - Uniform polishing quality without deformation of the processed parts.

    - High production. Simultaneous polishing of two equal parts in each polishing cycle.

    - Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.

    - Quick replacement of the fixtures.

    - Quick replacement of the polishing mops.

    - Cost-reduction in the amount of fixtures.

    - Important reduction in mops and polishing compounds consumption.

    - Polishing system avoiding excessive temperature of the parts during the working process.

    - Quick and easy programming. Interactive Teach System.

    - High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.

    TECHNICAL PARAMETERS

    NoItemsSpecifications
    1Dimensions (L*W*H)3000*3100*2900mm
    2Machine Power17KW
    3Rated Voltage380V
    4Max. Diameter of polishing wheel600mm
    5Min. Diameter of polishing wheel400mm
    6X-Axis travel (mm)1100
    7Y-Axis travel (mm)900
    8Z-Axis travel (mm)700
    9U-Axis travel (mm)±60°
    10V-Axis travel (mm)±360°
    11W-Axis travel (mm)±360°
    12Max.speed X axis20m/min
    13Max.speed Y axis20m/min
    14Max.speed Z axis20m/min
    15Max.speed U axis30°/sec.
    16Max.speed V axis30°/sec.
    17Max.speed W axis30°/sec.
