    China Wholesale Brass Water Meter Gravity Die Casting Machine Semi Automatic

    Ask Lasest Price
    Brand Name : DZ
    Model Number : HZ-450
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 2week
    • Product Details
    • Company Profile

    China Wholesale Brass Water Meter Gravity Die Casting Machine Semi Automatic

    Brass Faucet / Brass Water Meter Semi-Automatic Gravity Die Casting Machine

    Pouring Casting Machine Faucet Casting, Brass Casting, Aluminium Casting

    Metal Plumbing Fittings Gravity Pouring Casting Machine


    CHARACTERISTIC

    This machine is used for the casting of brass and other coppe ralloys poured by gravity into the die, to obtain medium/large size pieces or small size piecesby using multi-cavity dies.
    The machine, being a new generation gravity casting machine, is designed taking into consideration operatorsafety and ergonomics.
    The main characteristics of this newconcept machine are as follows:
    Mechanical structure,which is far morerobust,with all vital parts mounted inaccessible and protected positions.

    The dipping tank is an independent unit and can be easily removed ifnecessary. Furthermore during operation they are protected fromsand, grease and oil accidentally falling into them.
    The machine is supplied with avariable displacementpump, allowingto extend the life of the pump and tobe much more silent.
    Hydraulic and electric components,cylinders, and valves are also standardfor easy replacement.


    Main Technical Specifications

    #NameSpecification
    1Max. Die sizeΦ450mm
    2Max. Die working distance450mm
    3Max. Die Weight130kg
    4Max. Clamping distance≦250mm
    5Hydraulic Motor5Hp,6 degree
    6Hydraulic Pressure4~6Kpa
    7Side Casting Angle0°~90°
    8Direct Casting Angle0°~110°
    9Stirring motor0.75kw,6 degree ×2
    10Cooling tank850kg
    11Hydraulic oil volume163L
    12Machine Power5.5kw
    13Machine Weight1750kg
    14Dimension(LXWXH)2250mm×2160mm×1560mm

    China Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi AutomaticChina Wholesale Brass Water Meter Gravity Die Casting Machine Semi Automatic

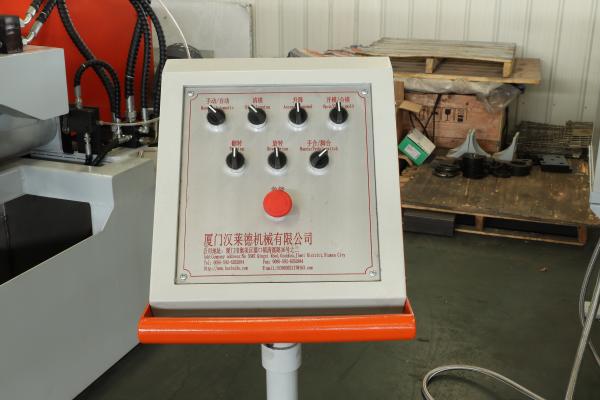

    Sample pictures


    Click the link to view video:

    https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
