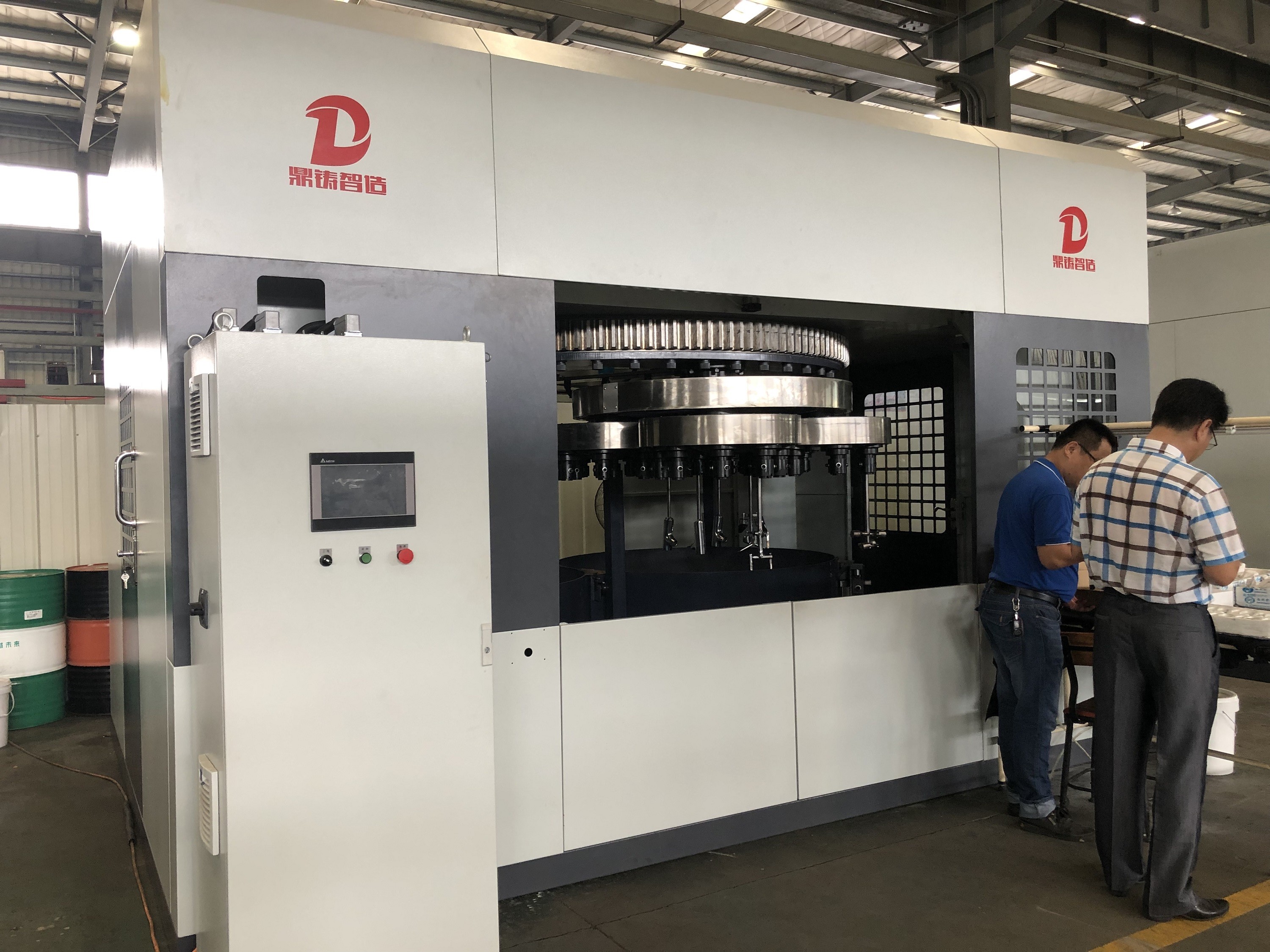

Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding

    Buy cheap Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding from wholesalers

    Buy cheap Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding from wholesalers
    • Buy cheap Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding from wholesalers
    • Buy cheap Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding from wholesalers
    • Buy cheap Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding from wholesalers
    • Buy cheap Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding from wholesalers

    Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding

    Ask Lasest Price
    Brand Name : DZ
    Model Number : NC-64
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 units/per month
    Delivery Time : 2weeks
    • Product Details
    • Company Profile

    Brass Tube Metal Parts 6 Axis Automatic Polishing Machine Grinding

    Brass Tube Metal Parts Surface Vibrating Grinding Polishing Machine

    Automatic Polishing Machine CNC 6 Axis Faucet Polishing Machine


    Precision polishing.

    -Uniform polishing quality without deformation of the processed parts.

    -High production. Four working stations work simultaneously,and with one time programming,the machine can finish the polishing and buffing jobs of four work pieces one time.

    -Full auto,waxing system;

    -Quick replacement of the fixtures.

    -Quick replacement of the polishing mops.

    -Cost-reduction in the amount of fixtures.

    -Important reduction in mops and polishing compounds consumption.

    -Polishing system avoiding excessive temperature of the parts during the working process.

    -Quick and easy programming. Interactive Teach System.

    -Finish the polishing/buffing jobs in any angle and position;

    -High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.


    TECHNICAL PARAMETERS

    NoItemsSpecifications
    1Dimensions (L*W*H)3000*3100*2900mm
    2Machine Power17KW
    3Rated Voltage380V
    4Max. Diameter of polishing wheel600mm
    5Min. Diameter of polishing wheel400mm
    6X-Axis travel (mm)1100
    7Y-Axis travel (mm)900
    8Z-Axis travel (mm)700
    9U-Axis travel (mm)±60°
    10V-Axis travel (mm)±360°
    11W-Axis travel (mm)±360°
    12Max.speed X axis20m/min
    13Max.speed Y axis20m/min
    14Max.speed Z axis20m/min
    15Max.speed U axis30°/sec.
    16Max.speed V axis30°/sec.
    17Max.speed W axis30°/sec.
