    CE ISO 6 Axis CNC Robot Grinding Machine Automatic Programming

    Ask Lasest Price
    Brand Name : DZ
    Model Number : FANUC
    Certification : CE ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20sets/per month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    CE ISO 6 Axis CNC Robot Grinding Machine Automatic Programming

    CE ISO 6 Axis CNC Robot Grinding Machine Automatic Programming

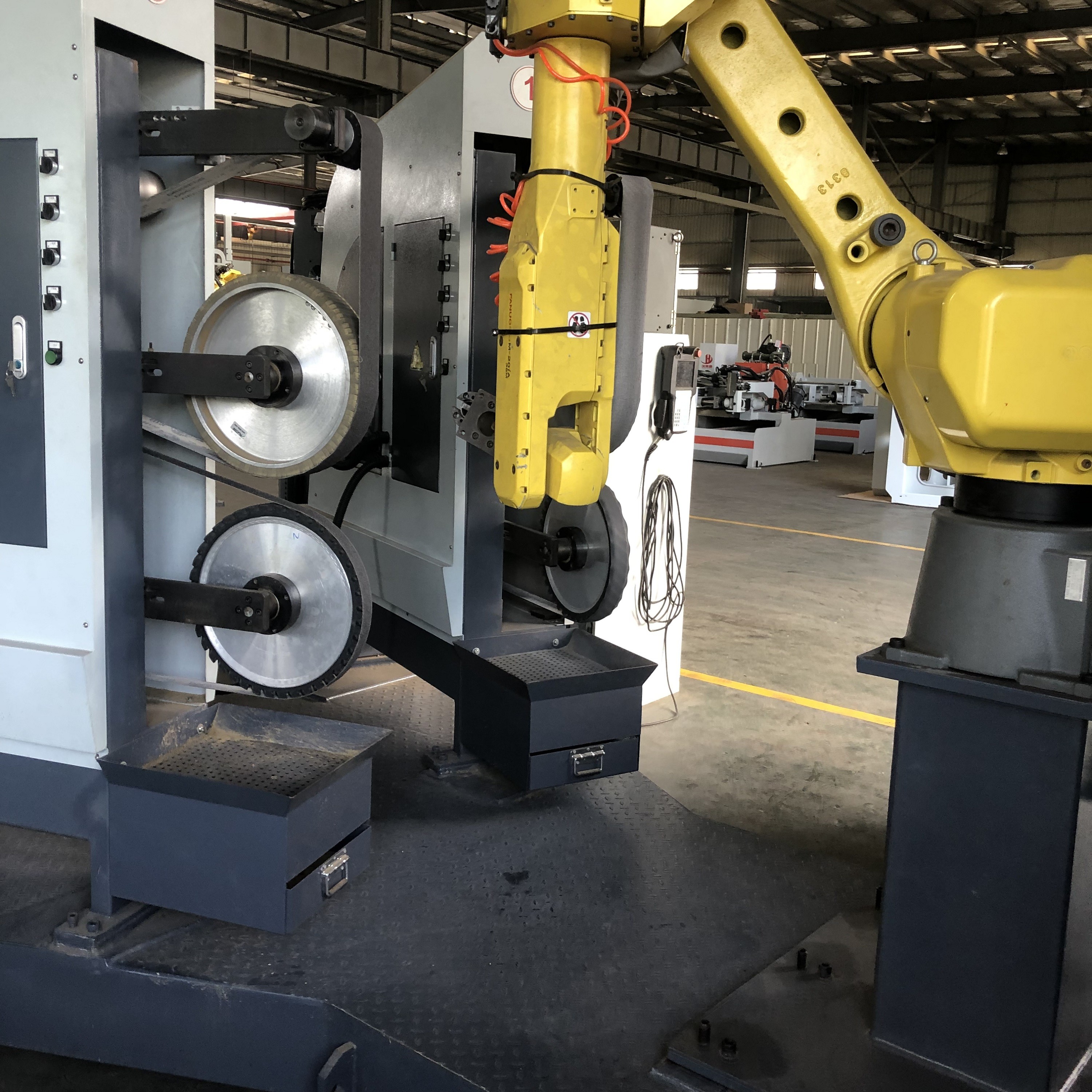

    6 Axis Automatic Programming Robot Grinding Machine With Well Performance


    ⅠCHARACTERISTIC


    1. Application in faucets, hardware, door locks, tools, tableware, car parts, toilet covers and other products for grinding, polishing and brushed finishing. Sanding belt polishing machines and the discharge tray are provided as needed for different process requirements.


    2. Manipulator brand can be selected.


    3. Servo motor controls the compensation torque, allowing for arbitrary torque adjustments during operation.


    4. Swing arm construction for better dust protection and flexible movement, catering to various product grinding requirements.

    5. Contact wheels drive, greatly improves the quality and stability of products.


    6. Buff wheels, sisal wheels, brushing wheels and other types of wheels can be installed as needed for the specific process requirements.


    7. One person operates multiple machines, reducing labour costs.


    TECHNICAAL PARAMETERS


    Code

    Item

    12G

    25G

    50G

    210G

    1

    Robot Cell

    FANUC

    FANUC

    FANUC

    FANUC

    2

    Model

    M-10iD/12

    M-20iD/25

    M-70iC/50E

    R-2000iC_210F

    3

    Voltage

    380V

    380V

    380V

    380V

    4

    Power

    13KW

    13KW

    20.5KW

    20.5KW

    5

    Grinding Machine Qty.

    2

    2

    3

    3

    6

    Sand Belt Qty.

    4

    4

    6

    6

    7

    Sand belt Dimensions

    4000mm

    4000mm

    4000mm

    4000mm

    8

    Feed Table

    1

    1

    1

    1


    CE ISO 6 Axis CNC Robot Grinding Machine Automatic ProgrammingCE ISO 6 Axis CNC Robot Grinding Machine Automatic ProgrammingCE ISO 6 Axis CNC Robot Grinding Machine Automatic ProgrammingCE ISO 6 Axis CNC Robot Grinding Machine Automatic ProgrammingCE ISO 6 Axis CNC Robot Grinding Machine Automatic ProgrammingCE ISO 6 Axis CNC Robot Grinding Machine Automatic ProgrammingCE ISO 6 Axis CNC Robot Grinding Machine Automatic Programming


    FAQ

    Q: Could please arrange the installation and commissioning ?
    A: Yes, we could and the buyer pay the charge


    Q: Could you arrange the production education?
    A: Yes, we could and the buyer pay the charge


    Q: How long is the guarantee?
    A: one year and charge for repair the whole life.


    Q: How about the lead time and delivery time of my order?
    A: Large cargo 15-25 working days, depending on the quantity, and is delivered according to the agreed time.
