    High Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation For Brass Faucets, Zinc Door Handle

    Ask Lasest Price
    Brand Name : DZ
    Model Number : NC-64
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30sets per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    High Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation For Brass Faucets, Zinc Door Handle

    Detail Information
    Warranty:1yearAfter-sales Service:Engineers Can Be Training And Installing In Overseas
    Condition:NewApplication:Metal
    Type:Bench PolisherName:Automatic Metal Polishing Machine
    High Light:

    cnc buffing machine,industrial metal polishing machine,Multiple Stations CNC Polishing Machine


    Product Description


    High Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation


    I. APPLICAITONS:


    1. Faucets

    2. Auto spare parts

    3. Locks and door handles

    4. All kids of metals and jewelry accessory

    5. Size range of polishing productsΦ 280*280

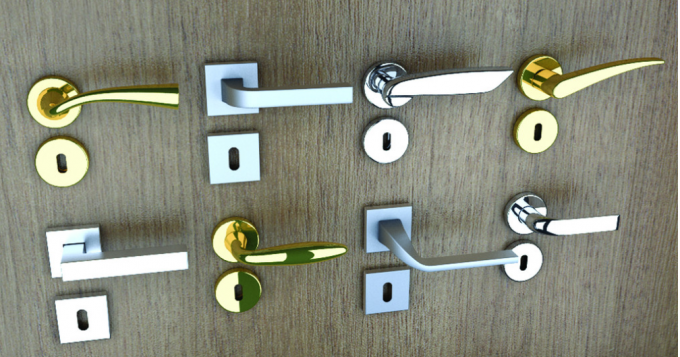

    Photos of polishing products

    High Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation For Brass Faucets, Zinc Door Handle

    High Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation 1


    II Introduction products


    2.1Product feature:


    2.2.1The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.

    2.2.2 The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.

    2.2.3 Programming method:demonstrator programming ,with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

    2.2.4 Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

    2.2.5 Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

    2.2.6 Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax

    2.2.7 Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.

    2.2.8 CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.


    TECHNICAL PARAMETERS


    CodeItemSpecifications-2station

    Specifications-4station

    1Dimensions (L*W*H)3000*3100*2900mm4400*3400*2900
    2Machine Power16.5KW35KW
    3Rated Voltage380V380V
    4Max. Diameter of polishing wheel600mm

    600mm

    5Min. Diameter of polishing wheel400mm

    400mm

    6X-Axis travel (mm)12001200
    7Y-Axis travel (mm)11001100
    8Z-Axis travel (mm)700700
    9U-Axis travel (mm)±90°±90°
    10V-Axis travel (mm)±360°±360°
    11W-Axis travel (mm)±360°±360°

    High Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation For Brass Faucets, Zinc Door HandleHigh Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation For Brass Faucets, Zinc Door HandleHigh Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation For Brass Faucets, Zinc Door Handle


    FAQ

    Q: could you please arrange the installation and commissioning ?
    A: Yes , we could and the buyer pay the charge


    Q: could you arrange the production education?
    A: Yes , we could and the buyer pay the charge


    Q:How long the guarantee?
    A: one year and charge for repair the whole life.


    Q: How about the lead time and delivery time of my order?
    A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
