    Universal 6 Axes CNC Polishing Machine For Metals And Jewellery Accessory

    Ask Lasest Price
    Brand Name : DZ
    Model Number : NC-64
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30sets per month
    Delivery Time : 2weeks
    • Product Details
    • Company Profile

    Universal 6 Axes CNC Polishing Machine For Metals And Jewellery Accessory

    Detail Information
    Dimensions (L*W*H):4400*3400*2900Machine Power:35KW
    Rated Voltage:380VMax. Diameter Of Polishing Wheel:600mm
    Min. Diameter Of Polishing Wheel:400mmX-Axis Travel (mm):1200
    Y-Axis Travel (mm):1100Z-Axis Travel (mm:700
    U-Axis Travel (mm):±90°V-Axis Travel (mm):±360°
    W-Axis Travel (mm):±360°
    High Light:

    6 Axes CNC Polishing Machine,Universal CNC Polishing Machine,

    brass tap bodies cnc buffing machine


    Product Description


    Universal Automatic 6 Axes CNC Polishing Machine for Brass Faucet Tap Bodies


    Precision polishing.

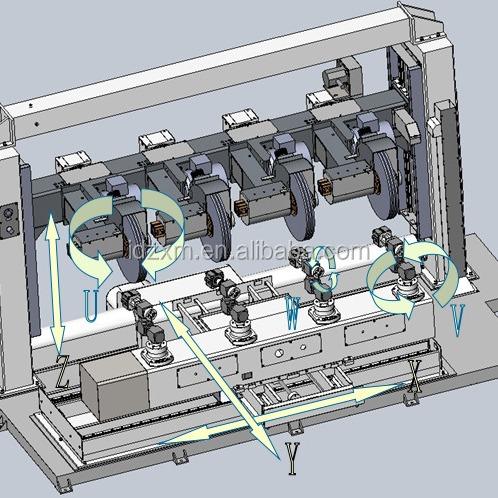

    1.The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 Axis rotary system; Multiple stations simultaneous operation ensures high flexibility and high product efficiency.

    2.The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.

    3.Programming method: teaching programming ,with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.

    4.Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.

    5.Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

    6.Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid compound or liquid compound.

    7.Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.

    8.CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.

    TECHNICAL PARAMETERS


    NoItemsSpecifications
    1Dimensions (L*W*H)3000*3100*2900mm
    2Machine Power17KW
    3Rated Voltage380V
    4Max. Diameter of polishing wheel600mm
    5Min. Diameter of polishing wheel400mm
    6X-Axis travel (mm)1100
    7Y-Axis travel (mm)900
    8Z-Axis travel (mm)700
    9U-Axis travel (mm)±60°
    10V-Axis travel (mm)±360°
    11W-Axis travel (mm)±360°
    12Max.speed X axis20m/min
    13Max.speed Y axis20m/min
    14Max.speed Z axis20m/min
    15Max.speed U axis30°/sec.
    16Max.speed V axis30°/sec.
    17Max.speed W axis30°/sec.
