| Detail Information | | Weight: | 6000kg | Voltage: | 380V/50Hz |
|---|
| Condition: | 100%New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical
Support,Online Support,Field Maintenance And Repair Service,Field
Installation |
|---|
| Warranty: | 1 Year |
|---|
| High Light: | Six Axis CNC Polishing Machine,Four Axis CNC Polishing Machine,32kw cnc grinding machine |
|---|
|
|
|
|
Product Description:

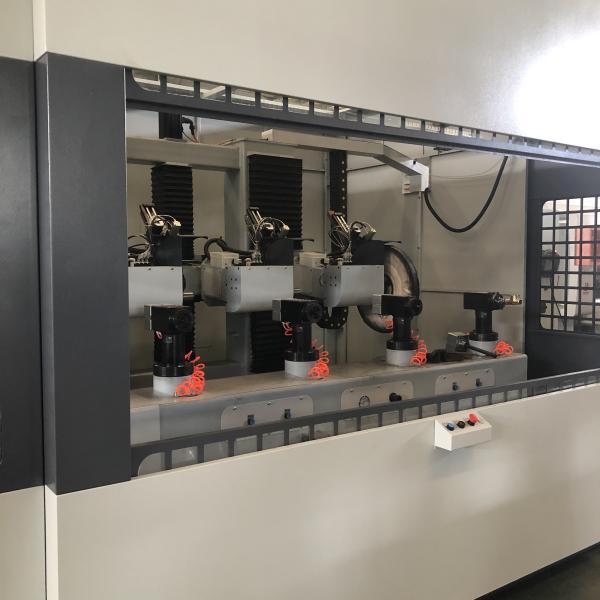

High Effective Four-Six-Axis CNC Polishing Machine for Polishing Door Handle
Machine function/ Feature intro
1.Grinding tooth type: A,AW,B,BW,C...... ( Conform to German DIN
1840 ) For detaiLplease check the grinding type list
2.With the function of CNC automatic precision trim CBN grind
wheel(For detail,please check the drawing of grinding wheel)
3.With the function of save and read customer* s information,also
can achieve accurate indexing of customer data
4.According to the different grindi ng working art,grind
speed/feedi ng rate with the multiplying buttons nd the dynamic
data will be display.
5.Various type of grin ding tooth,the parameters have the complete
accurate mathematical model and trajectory computi ng.
6.One piece of grinding wheel can grind various of grinding tooth
with the different parameters. ( Theoretical satisfaction,it is
affected by grinding efficie ncy ) Same thickness grin ding wheel
can make d iff ere nt pitch,only need very few stock.
7.AlI data of saw-blade tooth parameter are auto input, no need to
adjust by hand.
8.With an expert database of grinding teeth.(According to the
different material,different sectional
shapes,different size, there has the auxiliary guidanee of the
parameters such as the front Angle, back Angle,depth, tooth number;
tooth type, etc.
9.Dynamic update the grinding process dynamic display, open/repair
sequence number; processing time, the remaining time.
10.With a four-axis manual pulse generator, the manual mode of any
axis is adjusted according to the different axis selection.
11.With cooling liquid strong magnetic filtration separation
device.(grinding wheel ash can automatic filtering and collection)
12.With the function of different teeth, different parameter teeth
and the shape of the grinding wheel section can be checked,
compared and alarm.
Product Info
| 1 | Perormance Dimension | 5300*3400*3000 | 2800*3655*2800 |
| 2 | Machine Voltage | 32kw | 24kw |
| 3 | Rated Power | 380V | 380V |
| 4 | Max polishing wheel dimension | 600mm | 600mm |
| 5 | Min Polishing Wheel Dimension | 400mm | 400mm |
| 6 | X Axis Travel | 900mm | 900mm |
| 7 | Y Axis Travel | 825mm | 825mm |
| 8 | Z Axis Travel | 700mm | 700mm |
| 9 | U Axis Travel | ±90° | ±90° |
| 10 | V Axis Travel | ±360°(Positive Inversion) | ±360°(Positive Inversion) |
| 11 | W Axis Travel | ±360°(Positive Inversion) | ±360°(Positive Inversion)
|
FAQ
Q 1,Are you trading company or manufacture?
A: Yeah,Definitely We are manufacture
Q 2,Where is your factory Located?
A,Our factory is located in Quanzhou,Nanan City,Very closed to
Xiamen Airport,it will take almost 1hours to the airport.
Q 3,When Can I have your price?
A:We are glad to offer you the best price, but firstly,please
provide us the information of your material,with the detailed
technical parameter, then we can recomment you the best suitable
machine.
Q 4,How do we know how to operate and maintain the machine?
A: We will provide you the operation instruction in English
Version,If you need,we will send our technician to your place and
help you to train your people.
Q 5,How do you guarantee the quality?
A:That's a good questions,We are manufacture,we have our own
factory,We have high repulation in China,You can check your friends
or people in this line in china,they know Delin Machine.
