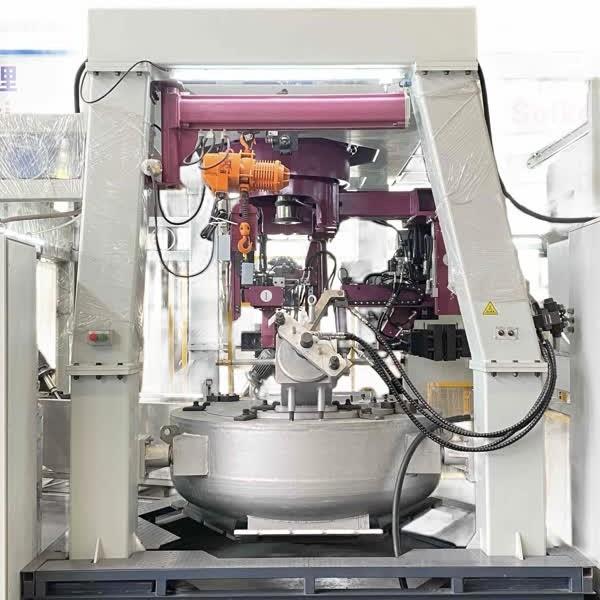

    Low Pressure Die Casting Machine Used in Brass Casting,such as sanitary wares.

    Ask Lasest Price
    Brand Name : DZ
    Model Number : RD-7050-S
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1 set /per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Low Pressure Die Casting Machine Used in Brass Casting,such as sanitary wares.

    Product Description:

    The Low Pressure Die Casting Machine is an advanced piece of equipment used to produce metal parts with excellent accuracy and precision. Low Pressure Die Casting Machine Used in Brass Casting,such as sanitary wares.Low Pressure Die Casting Machine Used in Brass Casting,such as sanitary wares.Low Pressure Die Casting Machine Used in Brass Casting,such as sanitary wares.

    Features:

    • Low Pressure Casting Machine: Low Pressure Die Casting Process
    • Max. Die Opening Stroke: 370mm
    • Max. Die Dimension: 600*400*240mm
    • Furnace Inductors: 3*35KW
    • Hydraulic Fluid Temperature: ≤55℃
    • Voltage: 380V

    Technical Parameters:

    PropertiesParameters
    Equipment Size:L*W*H5200*5000*3600mm
    Total Weight13T
    Total power125KW
    Voltage380V
    Max. Die Dimensions600*400*240mm
    Max. Die Thickness2*120mm
    Max. Die Opening stroke370mm
    Max.Die Weight200Kg
    Max. force of die closing2400KG
    Max. force of ejector500KW
    Max. die ejector stroke48mm
    Furnace Melting rate350KG/H
    Furnace Capacity1800KG
    Furnace Inductors3*35KW
    Hydraulic Motor Power8.7KW
    Hydraulic Rated Pressure8Mpa
    Hydraulic fluid temperature≤52℃
    Cooling system Water PH value7~8.5
    Cooling system Pressure3-5bar
    Cooling system Temp.20±2℃
    Cooling system Flow≥400L/Min ≤600L/Min
    Air pressure Compressed air pressure0.5-0.6Mpa
    Air pressure Compressed air consumption15m³/H

    Applications:

    For the production of large quantities of high quality brass castings.

    Packing and Shipping:

    Low Pressure Die Casting Machine is packaged in a cardboard box and then shipped in a wooden crate. The crate is designed to protect the machine from damage during shipping. The wooden crate is also designed to be easily handled by forklifts and pallet jacks for easy transport. Shipping labels are affixed to the crate for easy tracking and identification.

    FAQ:

    Q1: What is the Brand Name of the Low Pressure Die Casting Machine?

    A1: The Brand Name of the Low Pressure Die Casting Machine is DZ.

    Q2: What is the Model Number of the Low Pressure Die Casting Machine?

    A2: The Model Number of the Low Pressure Die Casting Machine is RD-7050-S.

    Q3: Where is the Low Pressure Die Casting Machine made?

    A3: The Low Pressure Die Casting Machine is made in China.

    Q4: Does the Low Pressure Die Casting Machine have any certifications?

    A4: Yes, the Low Pressure Die Casting Machine has CE and ISO certifications.

    Q5: What are the features of the Low Pressure Die Casting Machine?

    A5: The Low Pressure Die Casting Machine has features such as precise temperature control, high pressure die casting, and low pressure die casting.
