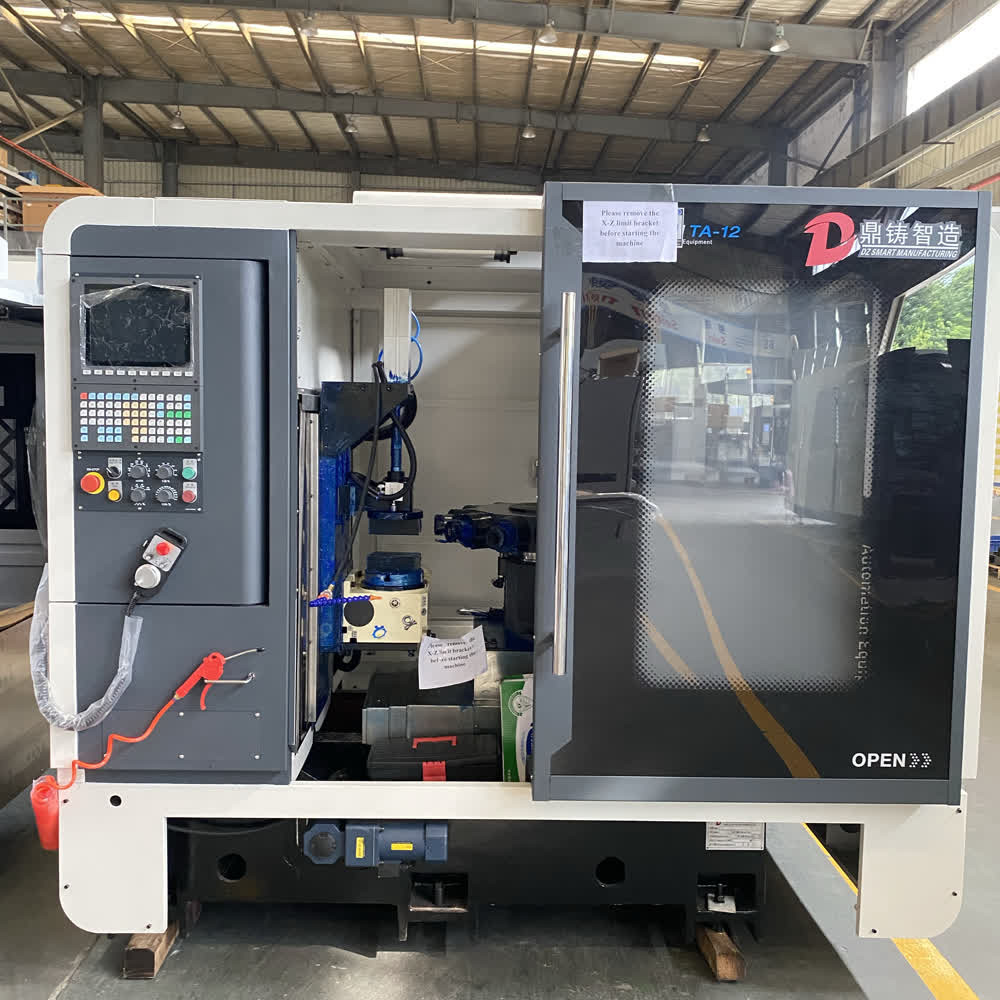

    High Speed Drill Press and Tapping Machine Combo for Manufacturing

    Ask Lasest Price
    Brand Name : DZ
    Model Number : TA-12
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3 sets per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    High Speed Drill Press and Tapping Machine Combo for Manufacturing

    Product Description:


    High Speed Drill Press and Tapping Machine Combo for ManufacturingHigh Speed Drill Press and Tapping Machine Combo for ManufacturingHigh Speed Drill Press and Tapping Machine Combo for ManufacturingHigh Speed Drill Press and Tapping Machine Combo for ManufacturingHigh Speed Drill Press and Tapping Machine Combo for Manufacturing

    Features:

    • It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.
    • Simple structure and low cost.
    • High production efficiency and low energy consumption.

    Technical Parameters:

    ParameterValue
    Computer-Numerical-Control Drilling MachineAutomated Tapping and Drilling Machine
    CNC Tapping MachineBT40 Spindle Taper
    Machine net weight3500KG
    Drilling Capacity (Copper Parts) through-holeexternal diameter 60mm
    Rotary Turret12 Axis
    Tool Changing Motor750W
    Base X-acis Max. travel (screw)450mm
    X/Y/Z axis Max. Speed30m/min
    X/Y/Z axis repeat positioning accuracy0.008mm
    Rotating fourth axisYT200R
    Servo spindle motor power5.5KW
    Lifting Z-acis Max. travel (screw)300mm
    Saddle Y-axis Max. travel(screw)500mm
    Spindle revolution0-3000rpm
    Spindle taperBT40
    Max. tapping (copper parts)50×3mm
    Spindle turret tool changing time0.8s/180°
    Working table size300*300mm
    Dimension:L×W×H2300×1600×1900mm

    Applications:

    Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.

    Packing and Shipping:

    Packing and shipping the CNC Tapping and Drilling Machine (New) requires the following steps:

    • Inspect the product for any damage or missing parts.
    • Ensure all components are secured within the packaging.
    • Securely attach the shipping label to the outside of the package.
    • Place the package in a shipping container.
    • Ship the package to the intended destination.

    FAQ:

    Q1: What is the brand name and model number of this CNC Tapping and Drilling Machine (New) product?
    A1: The brand name is DZ and the model number is TA-12.
    Q2: Where is this CNC Tapping and Drilling Machine (New) product made?
    A2: This product is Made in China.
    Q3: What is the size of this CNC Tapping and Drilling Machine (New) product?
    A3: The size of this product varies depending on the model.
    Q4: What materials can this CNC Tapping and Drilling Machine (New) product handle?
    A4: This product can handle various materials including aluminum, steel, and plastic.
